ASUS TUF GAMING B650M-E
ASUS TUF GAMING B650M-E
ASUS TUF GAMING B650M-E
ASUS TUF GAMING B650M-E
ASUS TUF GAMING B650M-E

ASUS TUF GAMING B650M-E

Technical Specifications

General
Wi-FiNo
UsageGaming
Width244 mm
ProductSpecs.colorsBlack
LED LightingYes
Height50 mm
Length244 mm

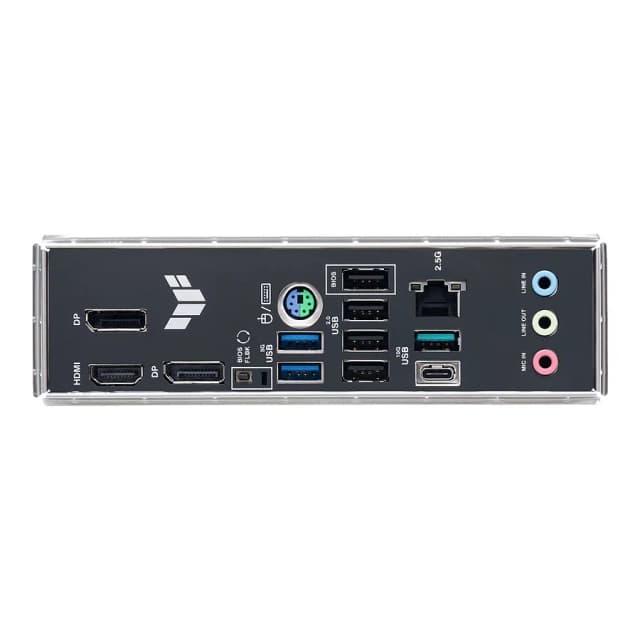

Rear I/O3x AUDIO_JACK
1x RJ45 2.5G
4x USB-A 2.0
2x USB-A 3.0
2x DISPLAYPORT 1.4
1x HDMI 2.1
1x PS2
1x USB-C 3.2
1x USB-A 3.2
1x OTHER
ChipsetAMD B650
PCI SlotsPCIe 4.0 x16
PCIe 4.0 x1
PCIe 4.0 x1
CPU SocketAMD AM5
MaterialsAluminum
Copper
PCB
Maximum Memory128 Go
Form FactorMicro ATX
Memory TypeDDR5
Memory Slots4
Audio ChipsetRealtek
ProductSpecs.biosFeaturesdualBios: false, clearCmos: true, flashback: true
Multi-GPU TypeNone
Audio Channels8
Memory ChannelDual Channel
RAID SupportedYes
Supported CPUs1
Max Memory per Slot32 Go
Storage Connectors1x M2
1x M2
4x SATA 3.0
Connector PlacementStandard
Internal Connectors1x LED_RGB
3x LED_ARGB
1x AUDIO_FRONT
1x POWER_CPU 4-pin
1x POWER_CPU 8-pin
1x POWER_ATX 24-pin
1x COM
4x USB_2_0
2x USB_3_0
1x USB_3_1
Supported RAID Modes0
1
10
Ethernet Controllers2.5 Mbps Realtek
Overclocking FeaturesNo
Integrated GraphicsNo
Supported Memory Frequencies4400 MHz
4800 MHz
5200 MHz
5400 MHz
5600 MHz
5800 MHz
6000 MHz
6200 MHz
6400 MHz
6600 MHz
6800 MHz
7000 MHz
7200 MHz
7600 MHz
CPU Integrated Graphics CompatibleYes

Recommended

materiel-net

159.95€

159,95 €

See price history
materiel-net

Asus TUF GAMING B650M-E

159,95 €

Price History
shipping cost and second-hand products excluded
