114,95 €

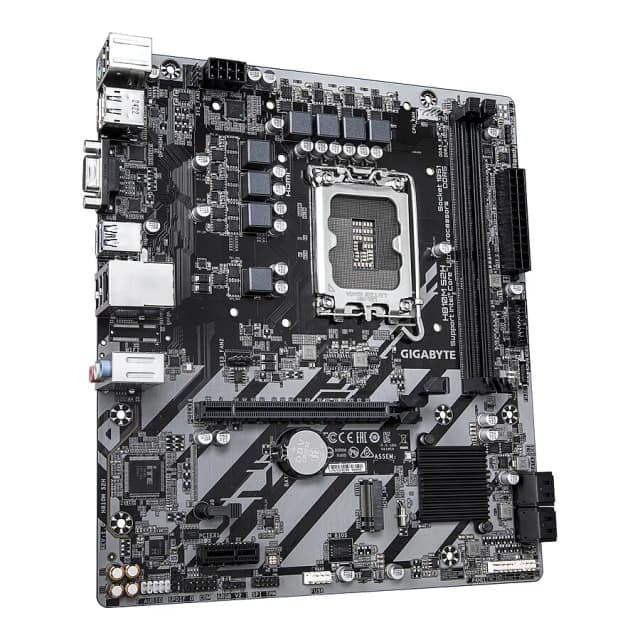

See price history| Brand | Gigabyte |
|---|---|
| Reference | H810M S2H |
| Chipset | Intel H810 |
|---|---|
| CPU Socket | Intel 1851 |
| Supported CPUs | 1 |
| Maximum Memory | 128 Go |
|---|---|
| Memory Type | DDR5 |
| Memory Slots | 2 |
| Memory Channel | Dual Channel |
| Max Memory per Slot | 64 Go |
| Supported Memory Frequencies | 4800 MHz |
| 5200 MHz | |
| 5600 MHz | |
| 5800 MHz | |
| 6000 MHz | |
| 6200 MHz | |
| 6400 MHz |
| Integrated Graphics | No |
|---|---|
| CPU Integrated Graphics Compatible | Yes |
| PCI Slots | PCIe 4.0 x16 |
|---|---|
| PCIe 3.0 x1 |
| Audio Chipset | Realtek 7.1 channels |
|---|---|
| Audio Channels | 8 |
| Wi-Fi | No |
|---|---|
| Ethernet Controllers | 1 Mbps Integrated |
| RAID Supported | Yes |
|---|---|
| Storage Connectors | 1x M2 |
| 4x SATA 3.0 | |
| Supported RAID Modes | 0 |
| 1 | |
| 5 | |
| 10 |

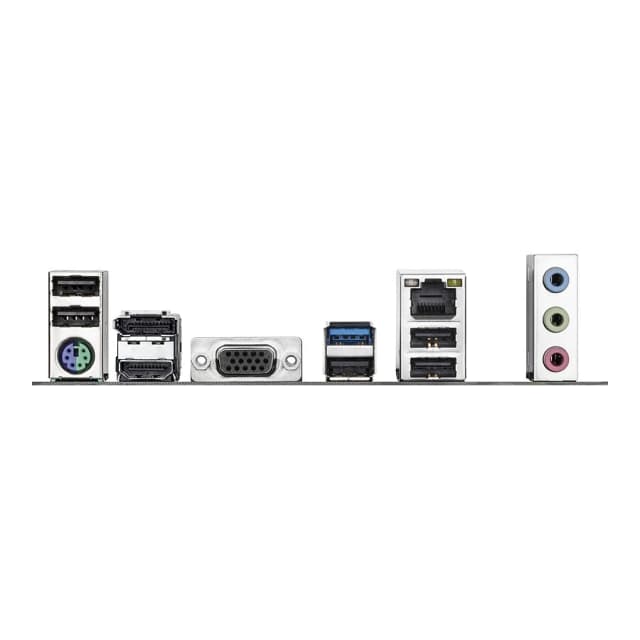

| Rear I/O | 3x AUDIO_JACK |
|---|---|
| 1x PS2 | |
| 1x RJ45 | |
| 5x USB-A 2.0 | |
| 1x USB-A 3.0 | |
| 1x HDMI | |
| 1x VGA | |
| 1x DISPLAYPORT 2.1 |
| Internal Connectors | 2x LED_ARGB |
|---|---|
| 1x S_PDIF | |
| 1x AUDIO_FRONT | |
| 1x POWER_CPU 8-pin | |
| 1x POWER_ATX 24-pin | |
| 1x COM | |
| 2x USB_2_0 | |
| 2x USB_3_0 | |
| 1x USB-C 3.0 |
| Usage | Multimedia |
|---|---|
| LED Lighting | Yes |
| Connector Placement | Standard |
| Overclocking Features | No |
| Width | 215 mm |
|---|---|
| Length | 244 mm |
| Form Factor | Micro ATX |
