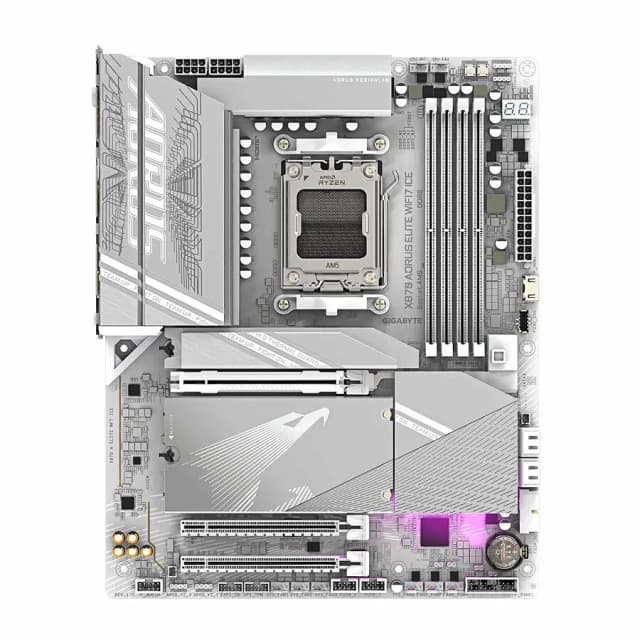

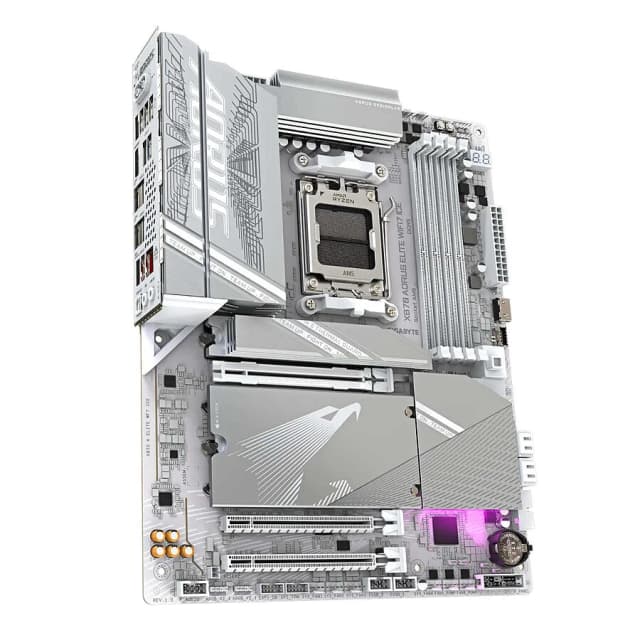

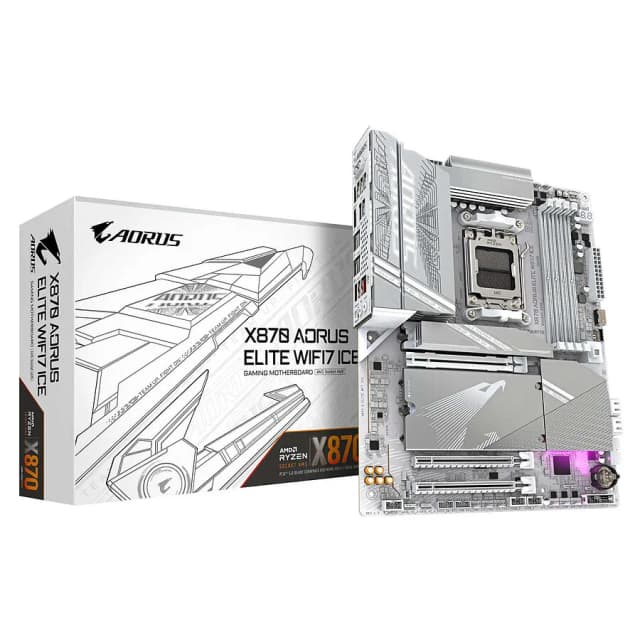

Gigabyte X870 AORUS ELITE WIFI7 ICE

329,95 €

Technical Specifications

General

Brand	Gigabyte
Reference	X870 A ELITE WF7 ICE
ProductSpecs.colors	ARGB
	Black
	Silver
	White
Height	35 mm
Materials	Aluminum
	Copper
	PCB
	Plastic
	Silicone
	Steel
ProductSpecs.eccSupport	No
ProductSpecs.biosFeatures	dualBios: false, clearCmos: true, flashback: true

Processor

Chipset	AMD X870
CPU Socket	AMD AM5
Supported CPUs	1

Memory

Maximum Memory	256 Go
Memory Type	DDR5
Memory Slots	4
Memory Channel	Dual Channel
Max Memory per Slot	64 Go
Supported Memory Frequencies	4400 MHz
	4800 MHz
	5200 MHz
	5600 MHz
	6000 MHz
	6200 MHz
	6400 MHz
	6600 MHz
	6666 MHz
	6800 MHz
	7000 MHz
	7200 MHz
	7600 MHz
	7800 MHz
	8000 MHz
	8200 MHz

Graphics

Integrated Graphics	No
CPU Integrated Graphics Compatible	Yes

Expansion

PCI Slots	PCIe 5.0 x16
	PCIe 4.0 x16 (x4)
	PCIe 3.0 x16 (x2)

Audio

Audio Chipset	Realtek ALC1220 7.1 channels
Audio Channels	8

Network

Wi-Fi	Yes
Bluetooth	Yes
Wi-Fi Version	7
Bluetooth Version	5.4
Ethernet Controllers	2.5 Mbps Realtek RTL8125 2.5GbE LAN

Storage

RAID Supported	Yes
Storage Connectors	4x SATA 3.0
	3x M2
	1x M2
Supported RAID Modes	0
	1
	5
	10

Connectivity

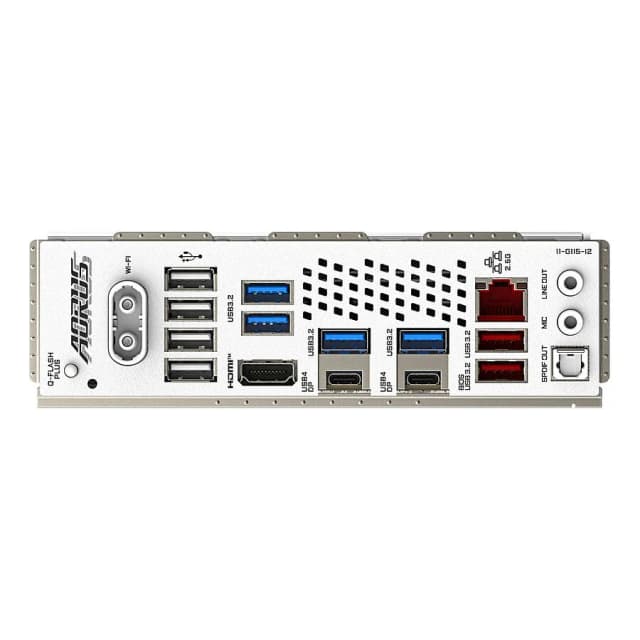

Rear I/O	4x USB-A 2.0
	4x USB-A 3.2 Gen1
	2x USB-A 3.2 Gen2
	2x USB-C USB4 Gen3x2
	1x HDMI 2.1
	2x AUDIO_JACK
	1x S_PDIF
	1x RJ45 2.5G
	2x SMA Wi-Fi 7 antenna
	1x BIOS_BUTTON Q-Flash Plus

Internal Connectivity

Internal Connectors	1x LED_RGB 4-pin
	3x LED_ARGB 4-pin
	1x AUDIO_FRONT 10-pin
	5x FAN 4-pin
	3x PUMP 4-pin
	2x POWER_CPU 8-pin
	1x POWER_ATX 24-pin
	2x USB_2_0 9-pin
	1x USB_3_0 19-pin
	1x USB_3_2 20-pin
	1x PANEL_FRONT
	2x SENSOR_TEMP 2-pin
	1x TPM
	1x OTHER
	1x OTHER
	1x OTHER
	1x OTHER
	1x OTHER

Features

Usage	Gaming
LED Lighting	Yes
Connector Placement	Standard
Overclocking Features	Yes

Dimensions

Width	244 mm
Length	305 mm
Form Factor	ATX
