MSI MAG X870 TOMAHAWK WIFI
MSI MAG X870 TOMAHAWK WIFI
MSI MAG X870 TOMAHAWK WIFI
MSI MAG X870 TOMAHAWK WIFI
MSI MAG X870 TOMAHAWK WIFI

MSI MAG X870 TOMAHAWK WIFI

Technical Specifications

General
Wi-FiYes
UsageGaming
Width244 mm
ProductSpecs.colorsARGB
Black
Silver
LED LightingYes
Height30 mm
Length305 mm

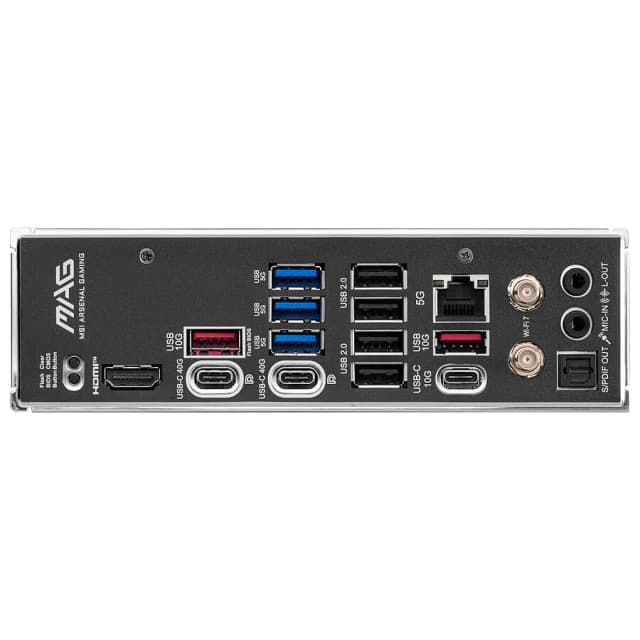

Rear I/O1x USB-C 4.0
1x USB-C 3.2
5x USB-A 3.2
4x USB-A 2.0
1x RJ45 5Gbps
1x HDMI 2.1
5x AUDIO_JACK
1x S_PDIF
2x SMA 7
1x BIOS_BUTTON
ChipsetAMD X870
PCI SlotsPCIe 5.0 x16
PCIe 4.0 x16 (x4)
PCIe 3.0 x16 (x1)
BluetoothYes
CPU SocketAMD AM5
MaterialsAluminum
PCB
Plastic
Steel
Maximum Memory256 Go
ProductSpecs.eccSupportNo
Form FactorATX
Memory TypeDDR5
Memory Slots4
Wi-Fi Version7
Audio ChipsetRealtek ALC4080 7.1 channels
ProductSpecs.biosFeaturesdualBios: false, clearCmos: true, flashback: true
Audio Channels8
Memory ChannelDual Channel
RAID SupportedYes
Supported CPUs1
Bluetooth Version5.4
Max Memory per Slot64 Go
Storage Connectors4x SATA 3.0
2x M2
2x M2
Connector PlacementStandard
Internal Connectors1x POWER_ATX 24-pin
2x POWER_CPU 8-pin
1x POWER_PCIE 8-pin
1x LED_RGB
3x LED_ARGB
1x AUDIO_FRONT
2x USB_2_0
2x USB_3_0
1x USB_3_2
1x TPM
1x CHASSIS_INTRUSION
6x FAN
1x PUMP
Supported RAID Modes0
1
10
Ethernet Controllers5 Mbps Realtek RTL8126
Overclocking FeaturesYes
Integrated GraphicsNo
Supported Memory Frequencies4800 MHz
5000 MHz
5200 MHz
5400 MHz
5600 MHz
5800 MHz
6000 MHz
6200 MHz
6400 MHz
6600 MHz
6800 MHz
7000 MHz
7200 MHz
7400 MHz
7600 MHz
7800 MHz
8000 MHz
8200 MHz
8400 MHz
CPU Integrated Graphics CompatibleYes
