159,95 €
See price history159,95 €
See price history| Brand | Gigabyte |
|---|---|
| Reference | B550 AORUS ELITE AX V2 |
| ProductSpecs.colors | Black |
| Grey | |
| Silver | |
| Height | 35 mm |
| Materials | Aluminum |
| Copper | |
| Steel | |
| ProductSpecs.biosFeatures | dualBios: false, clearCmos: true, flashback: true |
| Chipset | AMD B550 |
|---|---|
| CPU Socket | AMD AM4 |
| Supported CPUs | 1 |
| Maximum Memory | 128 Go |
|---|---|
| Memory Type | DDR4 |
| Memory Slots | 4 |
| Memory Channel | Dual Channel |
| Max Memory per Slot | 32 Go |
| Supported Memory Frequencies | 2133 MHz |
| 2400 MHz | |
| 2666 MHz | |
| 2933 MHz | |
| 3200 MHz | |
| 3400 MHz | |
| 3466 MHz | |
| 3600 MHz | |
| 3733 MHz | |
| 3866 MHz | |
| 4000 MHz | |
| 4133 MHz | |
| 4266 MHz | |
| 4400 MHz | |
| 4600 MHz | |
| 4733 MHz |
| Graphics Chipset | Integrated Radeon (AMD Ryzen) |
|---|---|
| Integrated Graphics | Yes |
| CPU Integrated Graphics Compatible | Yes |
| PCI Slots | PCIe 4.0 x16 |
|---|---|
| PCIe 3.0 x16 (x2) | |
| PCIe 3.0 x16 (x1) | |
| PCIe 3.0 x1 |
| Audio Chipset | Realtek ALC1200 |
|---|---|
| Audio Channels | 8 |
| Wi-Fi | Yes |
|---|---|
| Bluetooth | Yes |
| Wi-Fi Version | 6 |
| Bluetooth Version | 5.2 |
| Ethernet Controllers | 2.5 Mbps Realtek |
| RAID Supported | Yes |
|---|---|
| Storage Connectors | 1x M2 |
| 1x M2 | |
| 4x SATA 3.0 | |
| Supported RAID Modes | 0 |
| 1 | |
| 10 |

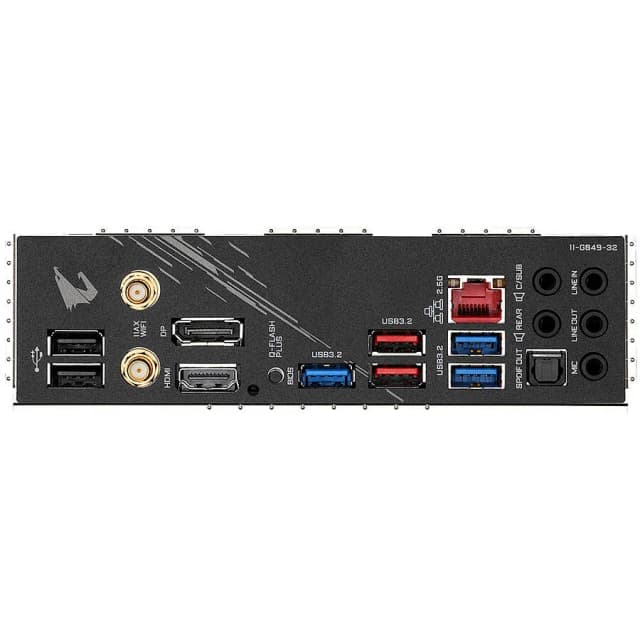

| Rear I/O | 1x DISPLAYPORT 1.4 |
|---|---|
| 1x HDMI 2.1 | |
| 2x SMA | |
| 2x USB-A 3.2 | |
| 3x USB-A 3.2 | |
| 2x USB-A 2.0 | |
| 1x RJ45 | |
| 1x S_PDIF | |
| 5x AUDIO_JACK | |
| 1x OTHER |
| Internal Connectors | 1x POWER_ATX 24-pin |
|---|---|
| 1x POWER_CPU 8-pin | |
| 4x USB_2_0 | |
| 2x USB_3_0 | |
| 1x USB_3_2 | |
| 4x FAN 4-pin | |
| 1x PUMP 4-pin | |
| 3x LED_RGB | |
| 2x LED_ARGB | |
| 1x AUDIO_FRONT | |
| 1x PANEL_FRONT | |
| 1x TPM 12-pin | |
| 1x OTHER |
| Usage | Gaming |
|---|---|
| LED Lighting | Yes |
| Connector Placement | Standard |
| Overclocking Features | Yes |
| Width | 244 mm |
|---|---|
| Length | 305 mm |
| Form Factor | ATX |
