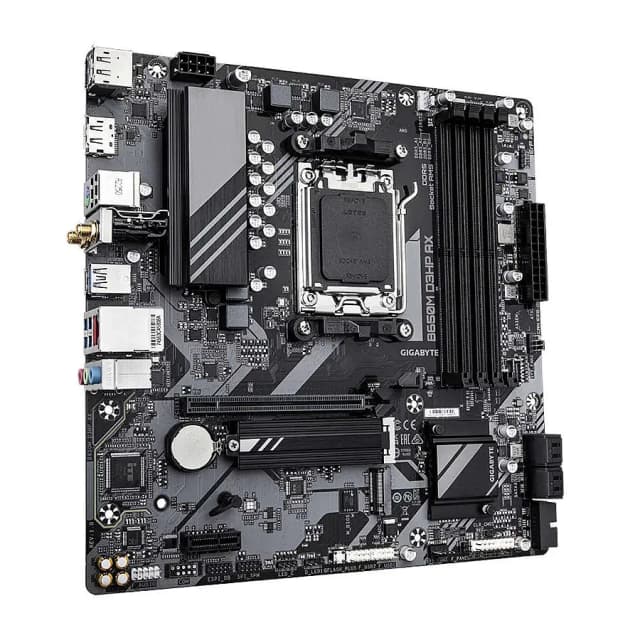

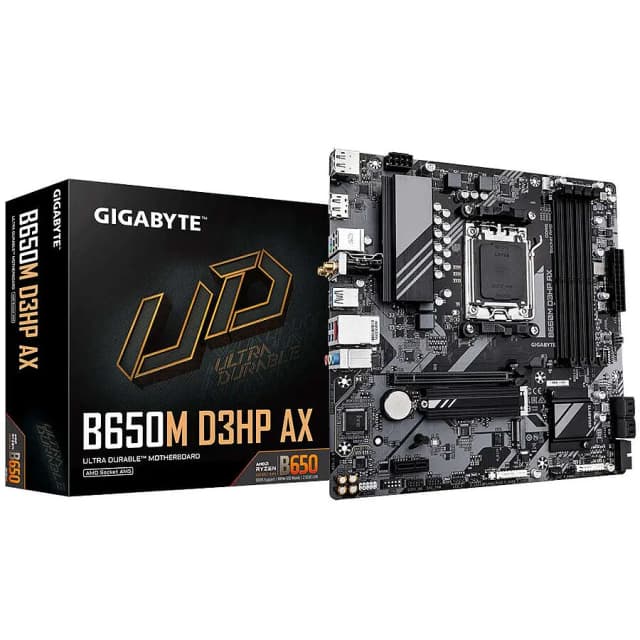

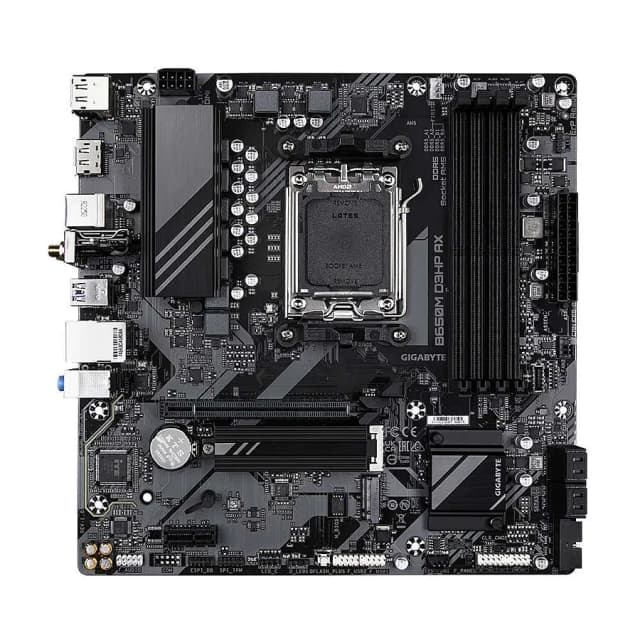

Gigabyte B650M D3HP AX
Gigabyte B650M D3HP AX
Gigabyte B650M D3HP AX
Gigabyte B650M D3HP AX

Gigabyte B650M D3HP AX

Technical Specifications

General
Wi-FiYes
UsageGaming
Multimedia
Width244 mm
LED LightingYes
Length244 mm

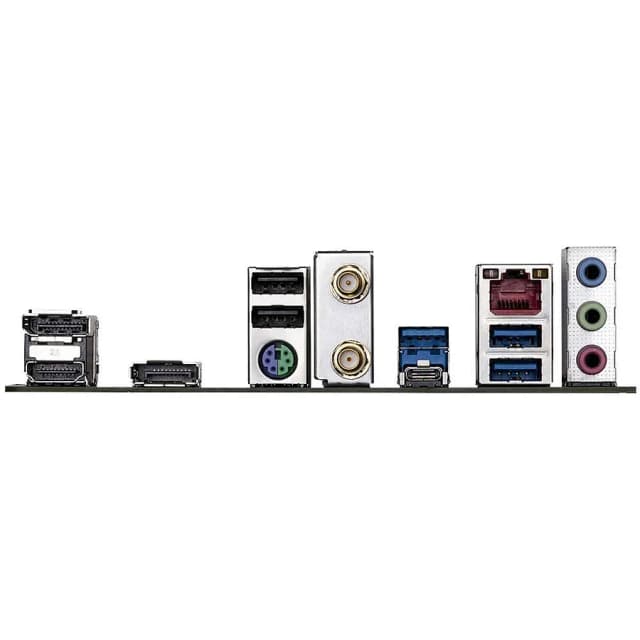

Rear I/O2x DISPLAYPORT
1x HDMI
3x USB-A 3.0
1x USB-C 3.0
2x USB-A 2.0
1x RJ45 2.5G
2x SMA
1x PS2
3x AUDIO_JACK
ChipsetAMD B650
PCI SlotsPCIe 4.0 x16
PCIe 3.0 x1
BluetoothYes
CPU SocketAMD AM5
Maximum Memory192 Go
Form FactorMicro ATX
Memory TypeDDR5
Memory Slots4
Wi-Fi Version6E
Audio ChipsetRealtek ALC897
Audio Channels8
Memory ChannelDual Channel
RAID SupportedYes
Supported CPUs1
Bluetooth Version5.3
Max Memory per Slot48 Go
Storage Connectors2x M2
4x SATA 3.0
Connector PlacementStandard
Internal Connectors1x LED_RGB
2x LED_ARGB
1x AUDIO_FRONT
1x POWER_CPU 8-pin
1x POWER_ATX 24-pin
4x USB_2_0
2x USB_3_0
1x USB_3_0
1x BIOS_BUTTON
Supported RAID Modes0
1
10
Ethernet Controllers2.5 Mbps Realtek integrated 2.5 GbE
Overclocking FeaturesYes
Integrated GraphicsNo
Supported Memory Frequencies4800 MHz
5200 MHz
5600 MHz
6000 MHz
6200 MHz
6400 MHz
6600 MHz
6800 MHz
7000 MHz
7200 MHz
7600 MHz
CPU Integrated Graphics CompatibleYes
