199,95 €
See price history| Brand | Gigabyte |
|---|---|
| Reference | Z790 EAGLE |
| ProductSpecs.colors | Black |
| Height | 35 mm |
| Materials | PCB |
| ProductSpecs.biosFeatures | dualBios: false, clearCmos: true, flashback: true |
| Chipset | Intel Z790 Express |
|---|---|
| CPU Socket | Intel 1700 |
| Supported CPUs | 1 |
| Maximum Memory | 256 Go |
|---|---|
| Memory Type | DDR5 |
| Memory Slots | 4 |
| Memory Channel | Dual Channel |
| Max Memory per Slot | 64 Go |
| Supported Memory Frequencies | 4400 MHz |
| 4800 MHz | |
| 5200 MHz | |
| 5400 MHz | |
| 5600 MHz | |
| 5800 MHz | |
| 6000 MHz | |
| 6200 MHz | |
| 6400 MHz | |
| 6600 MHz | |
| 6800 MHz | |
| 7000 MHz | |
| 7200 MHz | |
| 7400 MHz | |
| 7600 MHz |
| Integrated Graphics | No |
|---|---|
| CPU Integrated Graphics Compatible | Yes |
| PCI Slots | PCIe 5.0 x16 |
|---|---|
| PCIe 4.0 x16 (x4) | |
| PCIe 3.0 x16 (x1) | |
| 2x PCIe 3.0 x1 |
| Audio Chipset | Realtek ALC897 |
|---|---|
| Audio Channels | 8 |
| Wi-Fi | No |
|---|---|
| Ethernet Controllers | 2.5 Mbps Realtek Integrated 2.5 GbE |
| RAID Supported | Yes |
|---|---|
| Storage Connectors | 4x SATA 3.0 |
| 1x M2 | |
| 2x M2 | |
| Supported RAID Modes | 0 |
| 1 | |
| 5 | |
| 10 |

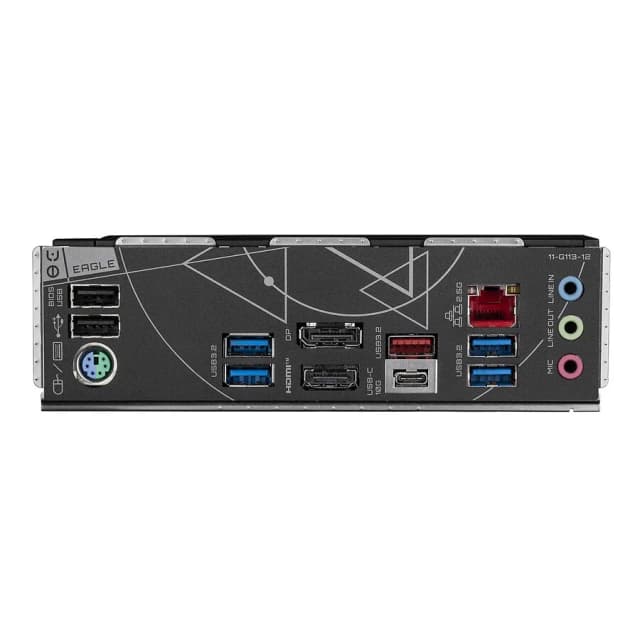

| Rear I/O | 1x RJ45 2.5G |
|---|---|
| 2x USB-A 2.0 | |
| 4x USB-A 3.0 | |
| 1x USB-A 3.1 | |
| 1x DISPLAYPORT | |
| 1x HDMI | |
| 1x USB-C 3.1 | |
| 3x AUDIO_JACK | |
| 1x PS2 |
| Internal Connectors | 1x USB_3_0 |
|---|---|
| 1x S_PDIF | |
| 2x USB_3_0 | |
| 4x USB_2_0 | |
| 1x POWER_ATX 24-pin | |
| 2x POWER_CPU 8-pin | |
| 1x BIOS_BUTTON | |
| 1x AUDIO_FRONT | |
| 2x LED_ARGB |
| Usage | Gaming |
|---|---|
| LED Lighting | No |
| Connector Placement | Standard |
| Overclocking Features | Yes |
| Width | 244 mm |
|---|---|
| Length | 305 mm |
| Form Factor | ATX |
