183,95 €
See price history| Brand | Gigabyte |
|---|---|
| Reference | B860 DS3H WIFI6E |
| ProductSpecs.colors | Black |
| Height | 35 mm |
| Materials | Aluminum |
| Copper | |
| PCB | |
| ProductSpecs.biosFeatures | dualBios: false, clearCmos: true, flashback: true |
| Chipset | Intel B860 |
|---|---|
| CPU Socket | Intel 1851 |
| Supported CPUs | 1 |
| Maximum Memory | 256 Go |
|---|---|
| Memory Type | DDR5 |
| Memory Slots | 4 |
| Memory Channel | Dual Channel |
| Max Memory per Slot | 64 Go |
| Supported Memory Frequencies | 5600 MHz |
| 6400 MHz | |
| 6600 MHz | |
| 6800 MHz | |
| 7000 MHz | |
| 7200 MHz | |
| 7400 MHz | |
| 7600 MHz | |
| 7800 MHz | |
| 7900 MHz | |
| 7950 MHz | |
| 8000 MHz | |
| 8200 MHz | |
| 8266 MHz | |
| 8400 MHz | |
| 8600 MHz | |
| 8800 MHz | |
| 9066 MHz |
| Graphics Chipset | Intel HD Graphics (CPU Integrated) |
|---|---|
| Integrated Graphics | No |
| CPU Integrated Graphics Compatible | Yes |
| PCI Slots | PCIe 5.0 x16 |
|---|---|
| 4x PCIe 4.0 x1 |
| Audio Chipset | Realtek ALC897 |
|---|---|
| Audio Channels | 8 |
| Wi-Fi | Yes |
|---|---|
| Bluetooth | Yes |
| Wi-Fi Version | 6E |
| Bluetooth Version | 5.3 |
| Ethernet Controllers | 2.5 Mbps Realtek RTL8125 |
| RAID Supported | Yes |
|---|---|
| Storage Connectors | 4x SATA 3.0 |
| 1x M2 | |
| 1x M2 | |
| Supported RAID Modes | 0 |
| 1 | |
| 5 | |
| 10 |

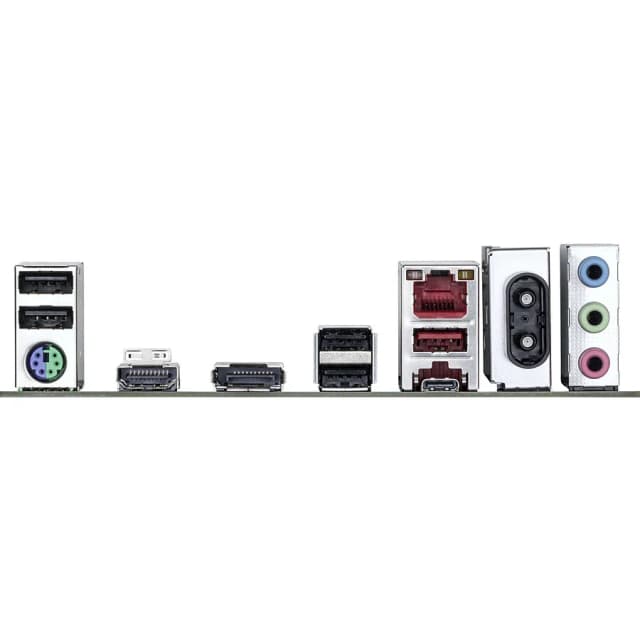

| Rear I/O | 1x PS2 |
|---|---|
| 1x HDMI 2.1 | |
| 1x DISPLAYPORT 2.1 | |
| 1x USB-C 3.2 | |
| 1x USB-A 3.2 | |
| 4x USB-A 2.0 | |
| 1x RJ45 2.5 | |
| 2x SMA 6E | |
| 3x AUDIO_JACK |
| Internal Connectors | 1x POWER_ATX 24-pin |
|---|---|
| 1x POWER_CPU 8-pin | |
| 1x FAN | |
| 2x FAN | |
| 2x PUMP | |
| 1x FAN | |
| 3x LED_ARGB | |
| 1x LED_RGB | |
| 1x AUDIO_FRONT | |
| 1x S_PDIF | |
| 2x USB_2_0 | |
| 1x USB_3_0 | |
| 1x USB_3_2 | |
| 1x TPM | |
| 1x COM | |
| 1x BIOS_BUTTON |
| Usage | Multimedia |
|---|---|
| LED Lighting | Yes |
| Connector Placement | Standard |
| Overclocking Features | No |
| Width | 244 mm |
|---|---|
| Length | 305 mm |
| Form Factor | ATX |
