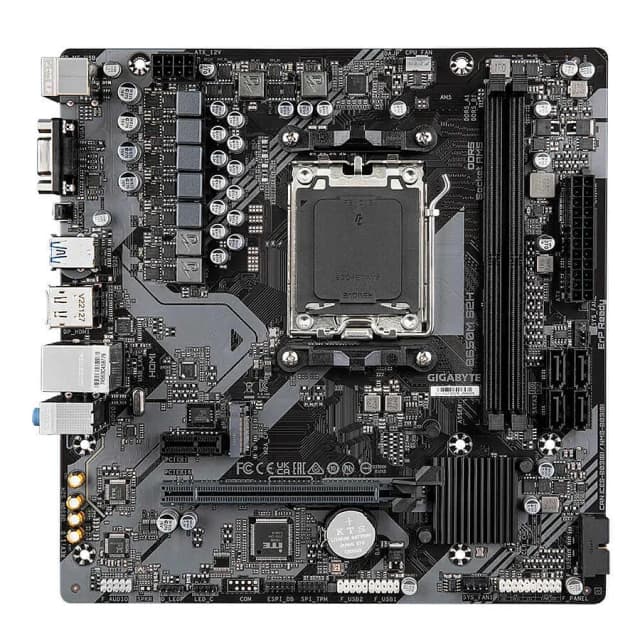

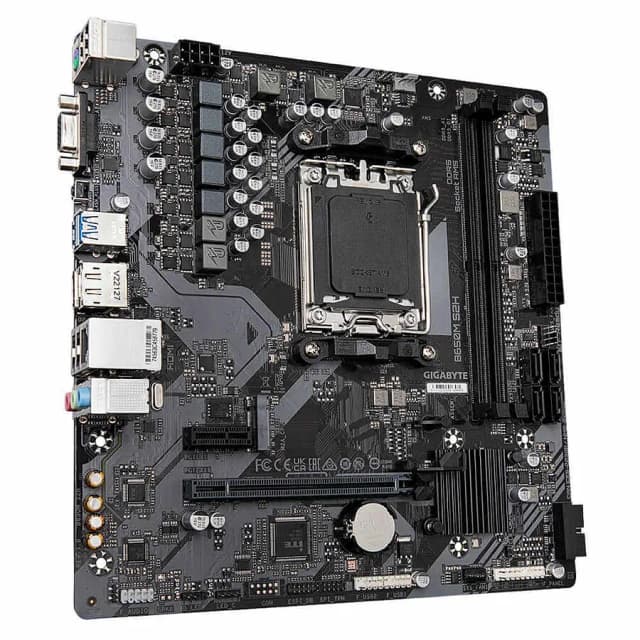

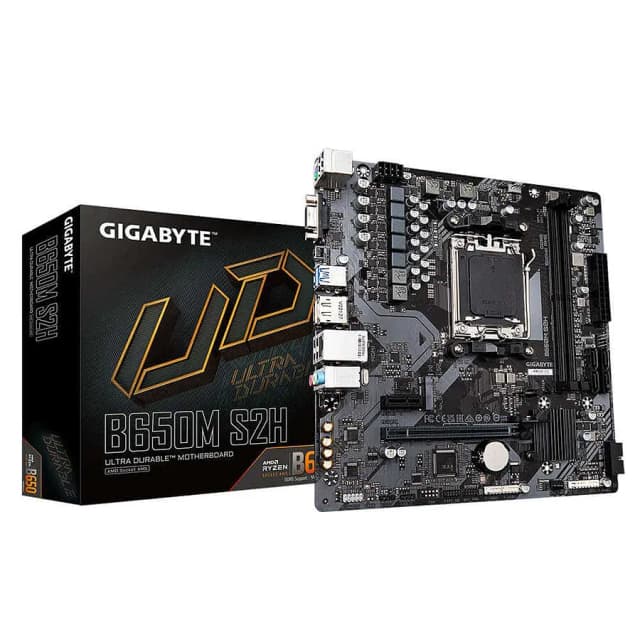

Gigabyte B650M S2H
Gigabyte B650M S2H
Gigabyte B650M S2H
Gigabyte B650M S2H

Gigabyte B650M S2H

Technical Specifications

General
Wi-FiNo
UsageGaming
Multimedia
Width225 mm
ProductSpecs.colorsBlack
LED LightingYes
Height35 mm
Length230 mm
Rear I/O2x USB-A 3.2 Gen 1
4x USB-A 2.0
1x HDMI 2.1
1x DISPLAYPORT 1.4
1x VGA
1x RJ45 1
1x PS2
3x AUDIO_JACK
ChipsetAMD B650
PCI SlotsPCIe 4.0 x16
PCIe 3.0 x1
BluetoothNo
CPU SocketAMD AM5
MaterialsPCB
Maximum Memory96 Go
Form FactorMicro ATX
Memory TypeDDR5
Memory Slots2
Audio ChipsetRealtek ALC897
ProductSpecs.biosFeaturesdualBios: false, clearCmos: true, flashback: true
Multi-GPU TypeNone
Audio Channels8
Memory ChannelDual Channel
RAID SupportedYes
Supported CPUs1
Graphics ChipsetIntegrated Graphics Processor
Max Memory per Slot48 Go
Storage Connectors1x M2
4x SATA 3.0
Connector PlacementStandard
Internal Connectors1x POWER_ATX 24-pin
1x POWER_CPU 8-pin
1x FAN 4-pin
2x FAN 4-pin
1x LED_ARGB
1x LED_RGB
1x AUDIO_FRONT
2x USB_2_0 10-pin
1x USB_3_0
1x PANEL_FRONT
1x TPM
Supported RAID Modes0
1
10
Ethernet Controllers1 Mbps Realtek GbE LAN
Overclocking FeaturesYes
Integrated GraphicsNo
Supported Memory Frequencies4400 MHz
4800 MHz
5200 MHz
5600 MHz
6000 MHz
6200 MHz
6400 MHz
CPU Integrated Graphics CompatibleYes

Recommended

materiel-net

109.95€

109,95 €

See price history
materiel-net

Gigabyte B650M S2H

109,95 €

Price History
shipping cost and second-hand products excluded
