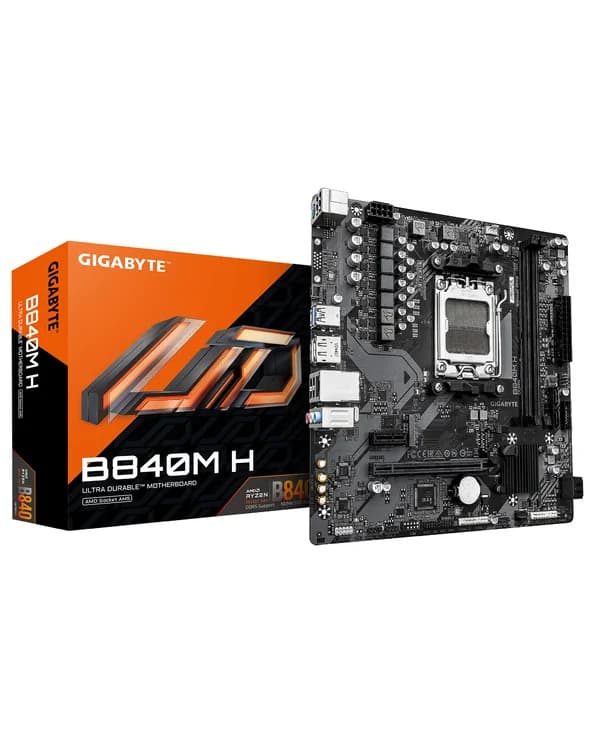

| Brand | GIGABYTE |
|---|---|
| Reference | B840M H |
| Colors | Black |
| Silver | |
| Height | 0 mm |
| Materials | Aluminum |
| PCB | |
| biosFeatures | clearCmos: true, flashback: true |
| Chipset | AMD B840 |
|---|---|
| CPU Socket | AMD AM5 |
| Supported CPUs | 1 |
| Maximum Memory | 128 Go |
|---|---|
| Memory Type | DDR5 |
| Memory Slots | 2 |
| Memory Channel | Dual Channel |
| Max Memory per Slot | 64 Go |
| Supported Memory Frequencies | 4400 MHz |
| 4800 MHz | |
| 5200 MHz | |
| 5600 MHz | |
| 6000 MHz | |
| 6200 MHz | |
| 6400 MHz | |
| 6600 MHz | |
| 6800 MHz | |
| 7000 MHz | |
| 7200 MHz |
| Integrated Graphics | No |
|---|---|
| CPU Integrated Graphics Compatible | Yes |
| PCI Slots | PCIe 4.0 x16 |
|---|---|
| PCIe 3.0 x16 (x4) |
| Audio Chipset | Realtek Audio CODEC 2/4/5.1/7.1 channels |
|---|---|
| Audio Channels | 8 |
| Wi-Fi | No |
|---|---|
| Bluetooth | No |
| Ethernet Controllers | 1 Mbps Realtek GbE LAN |
| RAID Supported | Yes |
|---|---|
| Storage Connectors | 1x M2 |
| 4x SATA 3.0 | |
| Supported RAID Modes | 0 |
| 1 | |
| 10 |
| Rear I/O | 1x RJ45 1.0 |
|---|---|
| 1x PS2 | |
| 2x USB-A 3.2 Gen 1 | |
| 4x USB-A 2.0 | |
| 3x AUDIO_JACK | |
| 1x DISPLAYPORT 1.4 | |
| 1x HDMI 2.1 | |
| 1x BIOS_BUTTON |
| Internal Connectors | 1x POWER_ATX 24-pin |
|---|---|
| 1x POWER_CPU 8-pin | |
| 1x FAN 4-pin | |
| 2x FAN 4-pin | |
| 2x LED_ARGB 4-pin | |
| 1x LED_RGB 4-pin | |
| 1x USB_3_0 20-pin | |
| 2x USB_2_0 9-pin | |
| 1x PANEL_FRONT 20-pin | |
| 1x AUDIO_FRONT 10-pin | |
| 1x TPM 12-pin |
| Usage | Gaming |
|---|---|
| Multimedia | |
| LED Lighting | No |
| Connector Placement | Standard |
| Overclocking Features | Yes |
| Width | 225 mm |
|---|---|
| Length | 230 mm |
| Form Factor | Micro ATX |
