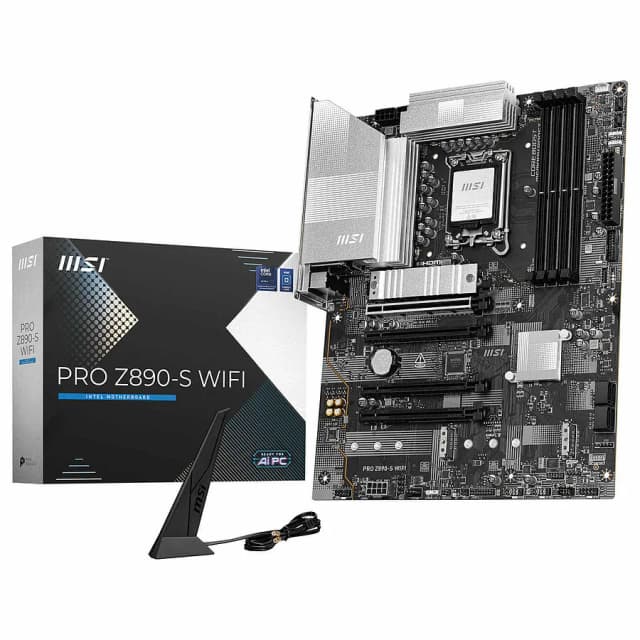

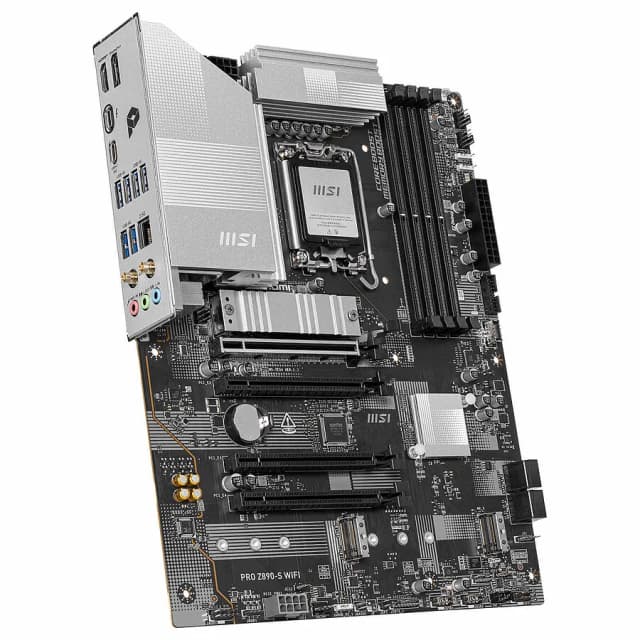

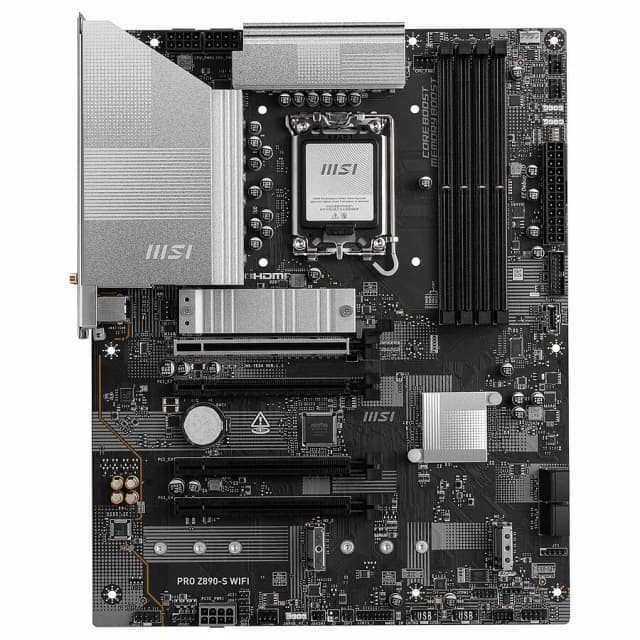

MSI PRO Z890-S WIFI

239,95 €

Technical Specifications

General

Brand	MSI
Reference	PRO Z890-S WIFI
ProductSpecs.colors	Silver
Height	30 mm
Materials	Copper
Materials	PCB
ProductSpecs.biosFeatures	dualBios: false, clearCmos: true, flashback: false

Processor

Chipset	Intel Z890
CPU Socket	Intel 1851
Supported CPUs	1

Memory

Maximum Memory	256 Go
Memory Type	DDR5
Memory Slots	4
Memory Channel	Dual Channel
Max Memory per Slot	64 Go
Supported Memory Frequencies	4800 MHz
	5000 MHz
	5200 MHz
	5400 MHz
	5600 MHz
	5800 MHz
	6000 MHz
	6200 MHz
	6400 MHz
	6600 MHz
	6800 MHz
	7000 MHz
	7200 MHz
	7400 MHz
	7600 MHz
	7800 MHz
	8000 MHz
	8200 MHz
	8400 MHz
	8800 MHz

Graphics

Integrated Graphics	No
CPU Integrated Graphics Compatible	Yes

Expansion

PCI Slots	PCIe 5.0 x16
	PCIe 3.0 x1
	PCIe 4.0 x4
	PCIe 4.0 x4

Audio

Audio Chipset	Realtek ALC897
Audio Channels	7.1

Network

Wi-Fi	Yes
Bluetooth	Yes
Wi-Fi Version	7
Bluetooth Version	5.4
Ethernet Controllers	2.5 Mbps Realtek RTL8125D

Storage

RAID Supported	Yes
Storage Connectors	1x M2
	4x SATA 3.0
	2x M2
Supported RAID Modes	0
	1
	5
	10

Connectivity

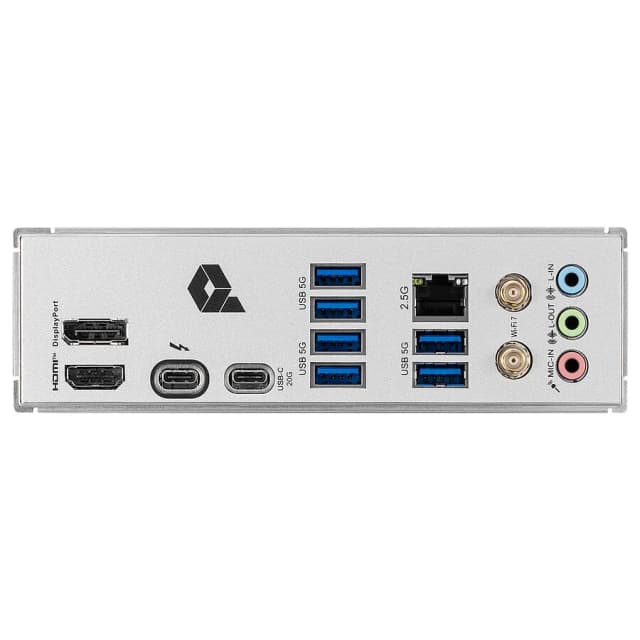

Rear I/O	1x USB-C 20Gbps
	1x DISPLAYPORT 1.4
	6x USB-A 5Gbps
	1x USB-C 40Gbps
	1x HDMI 2.1
	1x RJ45 2.5
	3x AUDIO_JACK
	2x SMA

Internal Connectivity

Internal Connectors	4x USB_2_0
	2x USB_3_0
	1x USB-C 20Gbps
	1x POWER_PCIE 8-pin
	1x LED_RGB
	1x POWER_ATX 24-pin
	2x POWER_CPU 8-pin
	1x AUDIO_FRONT
	3x LED_ARGB
	1x FAN
	1x PUMP
	4x FAN
	1x TPM
	1x CHASSIS_INTRUSION
	1x THUNDERBOLT
	2x PANEL_FRONT

Features

Usage	Gaming
LED Lighting	Yes
Connector Placement	Standard
Overclocking Features	Yes

Dimensions

Width	243.84 mm
Length	304.8 mm
Form Factor	ATX
