104,95 €

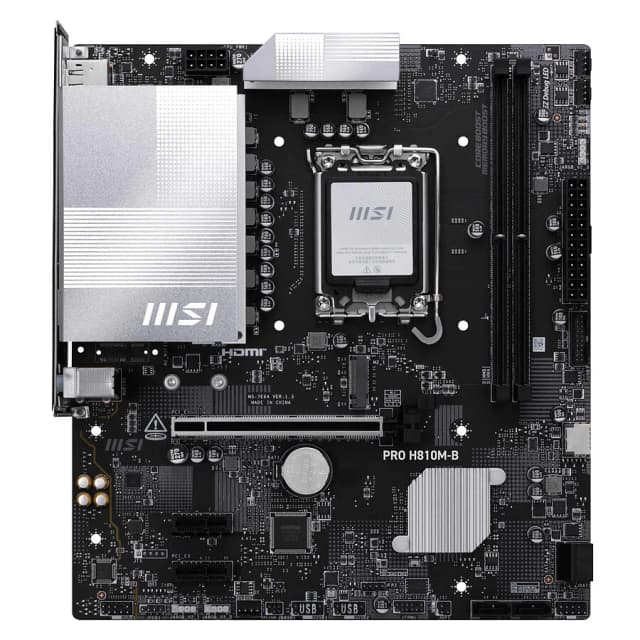

See price history| Brand | MSI |
|---|---|
| Reference | PRO H810M-B |
| ProductSpecs.colors | Black |
| Silver | |
| Height | 0 mm |
| Materials | Aluminum |
| PCB | |
| ProductSpecs.eccSupport | No |
| ProductSpecs.biosFeatures | dualBios: true, clearCmos: true, flashback: false |
| Chipset | Intel H810 |
|---|---|
| CPU Socket | Intel 1851 |
| Supported CPUs | 1 |
| Maximum Memory | 128 Go |
|---|---|
| Memory Type | DDR5 |
| Memory Slots | 2 |
| Memory Channel | Dual Channel |
| Max Memory per Slot | 64 Go |
| Supported Memory Frequencies | 4800 MHz |
| 5200 MHz | |
| 5600 MHz | |
| 5800 MHz | |
| 6000 MHz | |
| 6200 MHz | |
| 6400 MHz |
| Graphics Chipset | Intel UHD Graphics (requires compatible CPU) |
|---|---|
| Integrated Graphics | No |
| CPU Integrated Graphics Compatible | Yes |
| PCI Slots | PCIe 5.0 x16 |
|---|---|
| 2x PCIe 4.0 x1 |
| Audio Chipset | Realtek ALC897 |
|---|---|
| Audio Channels | 8 |
| Wi-Fi | No |
|---|---|
| Bluetooth | No |
| Ethernet Controllers | 2.5 Mbps Realtek RTL8125 |
| RAID Supported | No |
|---|---|
| Storage Connectors | 4x SATA 3.0 |
| 1x M2 |

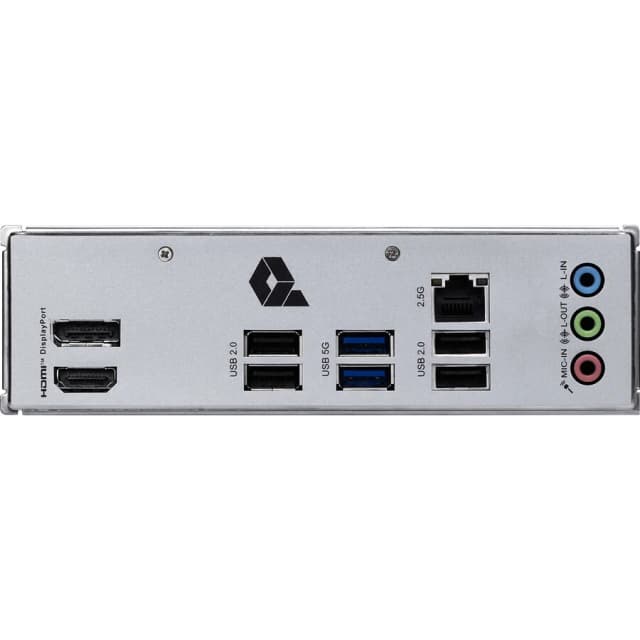

| Rear I/O | 1x DISPLAYPORT 1.4 |
|---|---|
| 1x HDMI 2.1 | |
| 4x USB-A 2.0 | |
| 3x AUDIO_JACK | |
| 1x RJ45 2.5G | |
| 2x USB-A 3.0 |
| Internal Connectors | 1x AUDIO_FRONT |
|---|---|
| 1x POWER_CPU 8-pin | |
| 1x POWER_ATX 24-pin | |
| 4x USB_2_0 | |
| 2x USB_3_0 | |
| 1x LED_RGB | |
| 3x LED_ARGB | |
| 1x USB_3_1 | |
| 3x FAN 4-pin | |
| 2x PANEL_FRONT | |
| 1x TPM |
| Usage | Multimedia |
|---|---|
| LED Lighting | Yes |
| Connector Placement | Standard |
| Overclocking Features | No |
| Width | 220 mm |
|---|---|
| Length | 244 mm |
| Form Factor | Micro ATX |
