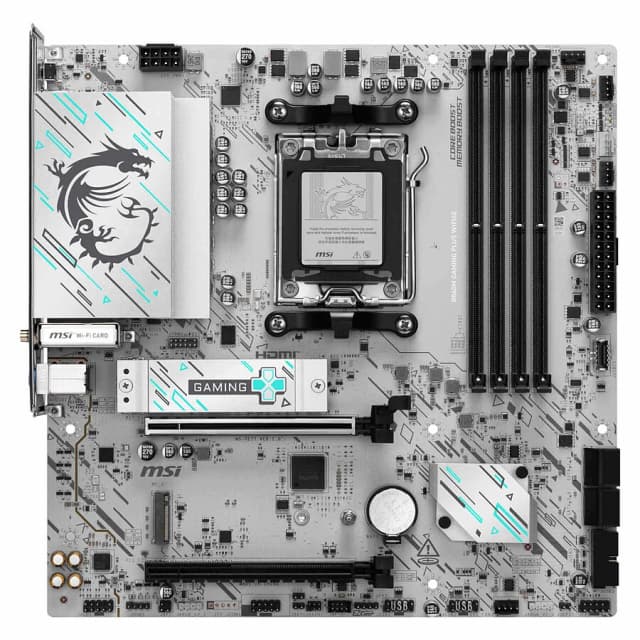

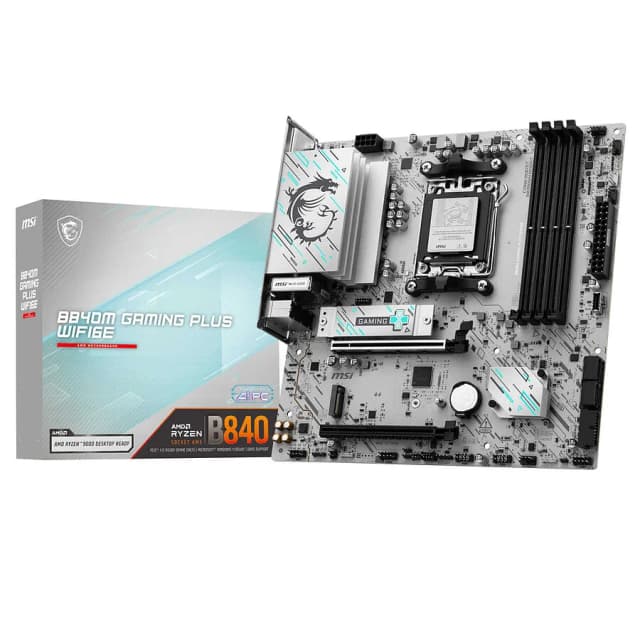

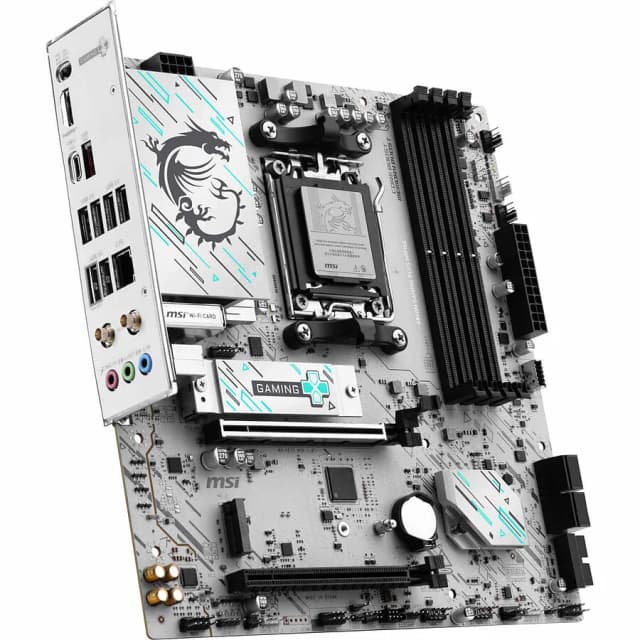

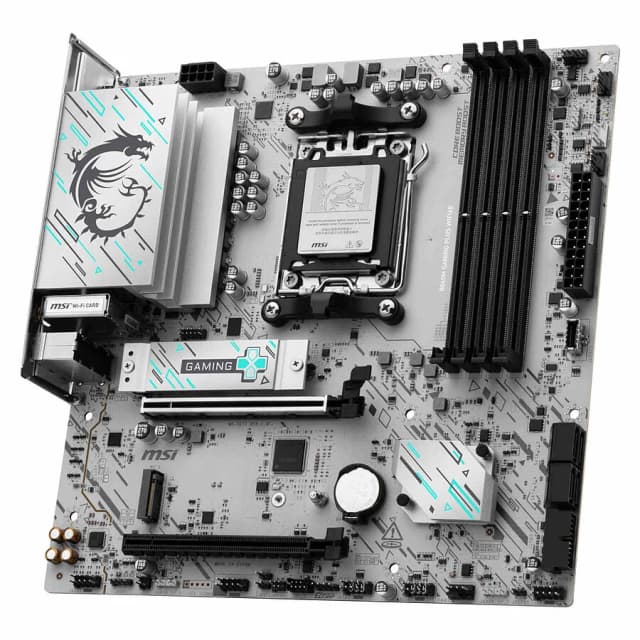

MSI B840M GAMING PLUS WIFI6E
MSI B840M GAMING PLUS WIFI6E
MSI B840M GAMING PLUS WIFI6E
MSI B840M GAMING PLUS WIFI6E
MSI B840M GAMING PLUS WIFI6E

MSI B840M GAMING PLUS WIFI6E

Technical Specifications

General
Wi-FiYes
UsageGaming
Width244 mm
LED LightingYes
Length244 mm

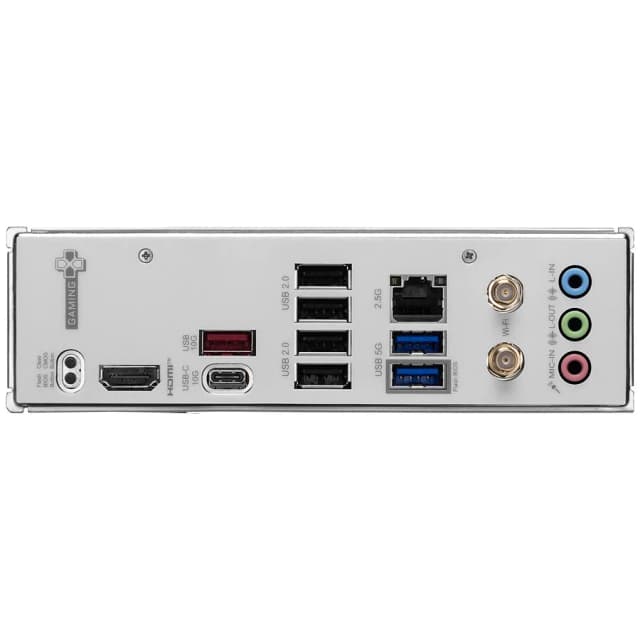

Rear I/O1x USB-C 3.1
4x USB-A 2.0
1x HDMI
1x USB-A 3.1
2x USB-A 3.0
1x RJ45
1x BIOS_BUTTON
3x AUDIO_JACK
2x SMA
ChipsetAMD B840
PCI SlotsPCIe 4.0 x16
PCIe 3.0 x16 (x4)
BluetoothYes
CPU SocketAMD AM5
Maximum Memory256 Go
Form FactorMicro ATX
Memory TypeDDR5
Memory Slots4
Wi-Fi Version6E
Audio ChipsetRealtek ALC897
Audio Channels8
Memory ChannelDual Channel
RAID SupportedYes
Supported CPUs1
Bluetooth Version5.3
Max Memory per Slot64 Go
Storage Connectors4x SATA 3.0
2x M2
Connector PlacementStandard
Internal Connectors3x LED_ARGB
1x AUDIO_FRONT
1x POWER_CPU 8-pin
1x POWER_ATX 24-pin
4x USB_2_0
2x USB_3_0
1x CHASSIS_INTRUSION
1x COM
1x USB_3_1
1x LED_RGB
Supported RAID Modes0
1
10
Ethernet Controllers2.5 Mbps Realtek RTL8125D
Overclocking FeaturesNo
Integrated GraphicsNo
Supported Memory Frequencies4800 MHz
5000 MHz
5200 MHz
5400 MHz
5600 MHz
5800 MHz
6000 MHz
6400 MHz
8000 MHz
CPU Integrated Graphics CompatibleYes

Recommended

materiel-net

149.95€

149,95 €

See price history
materiel-net

MSI B840M GAMING WIFI6E (B840M GAMING PLUS WIFI6E)

149,95 €

Price History
shipping cost and second-hand products excluded
