1 079,95 €

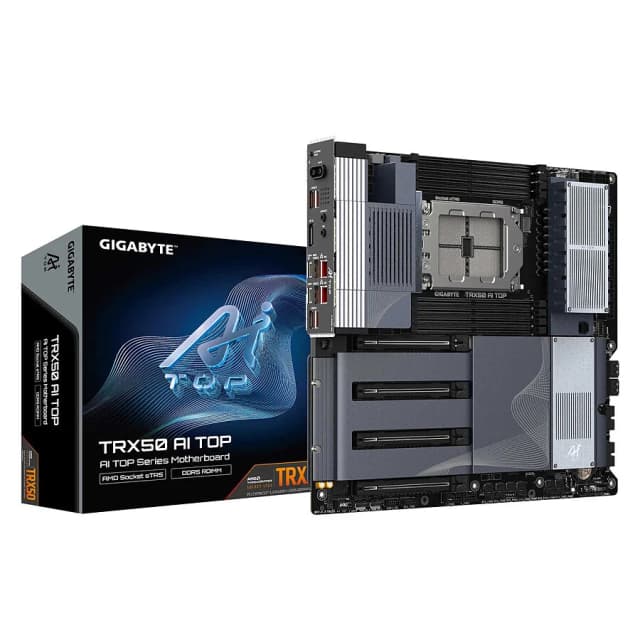

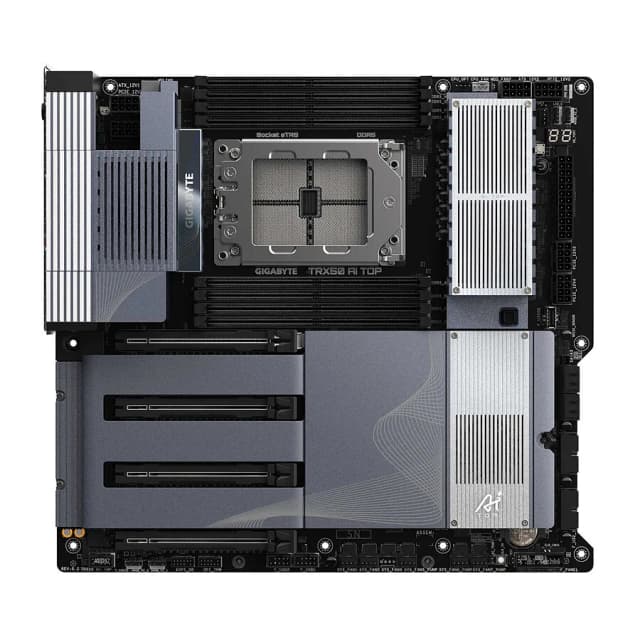

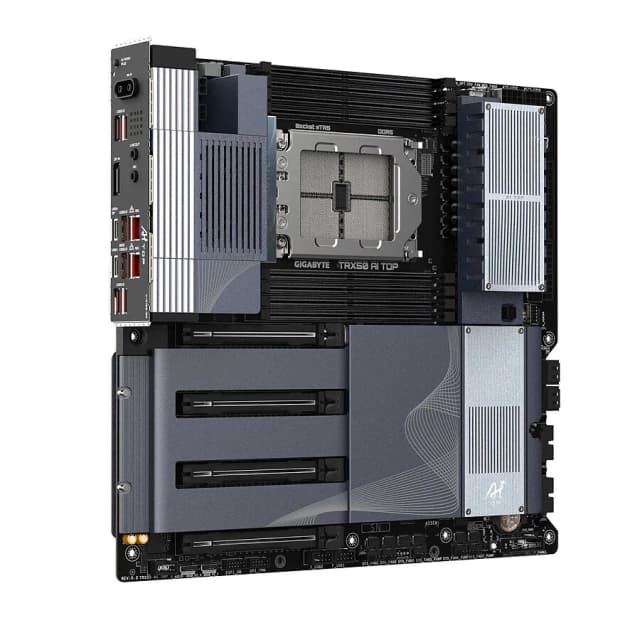

See price history| Brand | Gigabyte |
|---|---|
| Reference | TRX50 AI TOP-2B |
| ProductSpecs.colors | Black |
| Height | 35 mm |
| Materials | Aluminum |
| PCB | |
| ProductSpecs.eccSupport | Yes |
| ProductSpecs.biosFeatures | dualBios: false, clearCmos: true, flashback: true |
| Chipset | AMD TRX50 |
|---|---|
| CPU Socket | AMD sTR5 |
| Supported CPUs | 1 |
| Maximum Memory | 2048 Go |
|---|---|
| Memory Type | DDR5 |
| Memory Slots | 8 |
| Memory Channel | Quad Channel |
| Max Memory per Slot | 256 Go |
| Supported Memory Frequencies | 4800 MHz |
| 5200 MHz | |
| 5600 MHz | |
| 5800 MHz | |
| 6000 MHz | |
| 6200 MHz | |
| 6400 MHz | |
| 6600 MHz | |
| 6800 MHz | |
| 7000 MHz | |
| 7200 MHz | |
| 7400 MHz | |
| 7600 MHz | |
| 7800 MHz | |
| 8000 MHz |
| Integrated Graphics | No |
|---|---|
| CPU Integrated Graphics Compatible | No |
| PCI Slots | 3x PCIe 5.0 x16 |
|---|---|
| PCIe 5.0 x16 |
| Audio Chipset | Realtek ALC4080 |
|---|---|
| Realtek ALC897 | |
| Audio Channels | 2 |
| Wi-Fi | Yes |
|---|---|
| Bluetooth | Yes |
| Wi-Fi Version | 7 |
| Bluetooth Version | 5.3 |
| Ethernet Controllers | 2x 10 Mbps Marvell AQtion AQC113C |
| RAID Supported | Yes |
|---|---|
| Storage Connectors | 4x SATA 3.0 |
| 4x M2 | |
| Supported RAID Modes | 0 |
| 1 | |
| 10 |

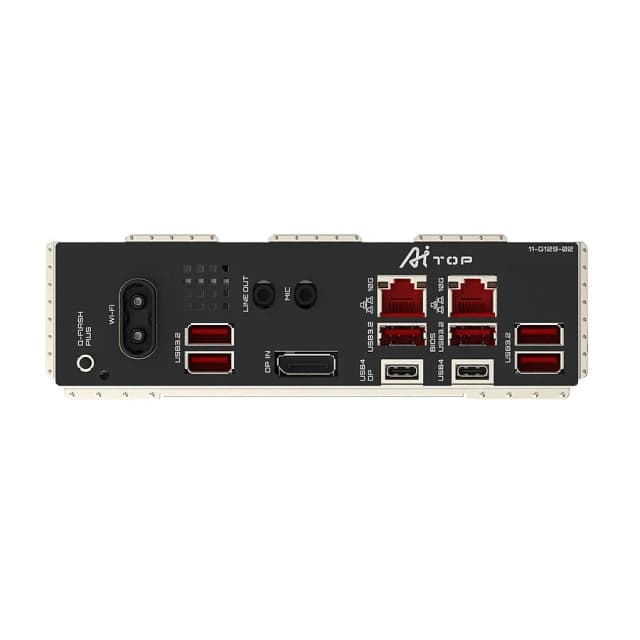

| Rear I/O | 1x BIOS_BUTTON |
|---|---|
| 2x RJ45 | |
| 6x USB-A 3.2 | |
| 2x SMA | |
| 2x AUDIO_JACK | |
| 2x USB-C 4 | |
| 1x DISPLAYPORT 1.4 |
| Internal Connectors | 1x POWER_ATX 24-pin |
|---|---|
| 2x POWER_CPU 8-pin | |
| 4x POWER_PCIE 8-pin | |
| 1x FAN | |
| 1x PUMP | |
| 2x FAN | |
| 4x PUMP | |
| 3x LED_ARGB | |
| 1x LED_RGB | |
| 4x USB_2_0 | |
| 2x USB_3_0 | |
| 1x USB-C 3.2 | |
| 1x AUDIO_FRONT | |
| 1x PANEL_FRONT | |
| 1x TPM | |
| 2x SENSOR_TEMP | |
| 1x CHASSIS_INTRUSION |
| Usage | Server |
|---|---|
| LED Lighting | Yes |
| Connector Placement | Standard |
| Overclocking Features | No |
| Width | 330 mm |
|---|---|
| Length | 305 mm |
| Form Factor | E-ATX |
