| Brand | Asrock |
|---|---|

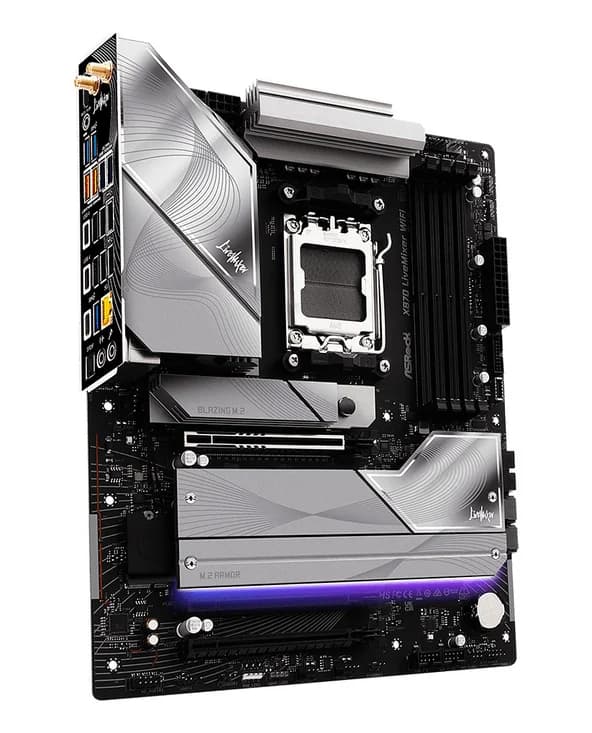

| Reference | X870 LIVEMIXER WIFI |
| ProductSpecs.colors | Black |
| Silver | |
| Titanium | |
| Height | 80 mm |
| Materials | Aluminum |
| Copper | |
| PCB | |
| ProductSpecs.eccSupport | Yes |
| ProductSpecs.biosFeatures | dualBios: false, clearCmos: true, flashback: true |
| Chipset | AMD X870 |
|---|---|
| CPU Socket | AMD AM5 |
| Supported CPUs | 100 |
| Maximum Memory | 256 Go |
|---|---|
| Memory Type | DDR5 |
| Memory Slots | 4 |
| Memory Channel | Dual Channel |
| Max Memory per Slot | 64 Go |
| Supported Memory Frequencies | 4800 MHz |
| 5200 MHz | |
| 5600 MHz | |
| 6000 MHz | |
| 6400 MHz | |
| 6800 MHz | |
| 7000 MHz | |
| 7200 MHz | |
| 7600 MHz | |
| 8000 MHz |
| Graphics Chipset | AMD Radeon |
|---|---|
| Integrated Graphics | Yes |
| CPU Integrated Graphics Compatible | Yes |
| PCI Slots | PCIe 5.0 x16 |
|---|---|
| 2x PCIe 3.0 x16 (x4) |
| Audio Chipset | Realtek ALC4082 7.1 channels |
|---|---|
| Audio Channels | 7 |
| Wi-Fi | Yes |
|---|---|
| Bluetooth | Yes |
| Wi-Fi Version | WiFi 7 |
| Bluetooth Version | 5.4 |
| Ethernet Controllers | 5 Mbps Realtek RTL8126 |
| RAID Supported | Yes |
|---|---|
| Storage Connectors | 2x M2 |
| 2x M2 | |
| 2x SATA 3.0 | |
| Supported RAID Modes | 0 |
| 1 | |
| 10 |
| Rear I/O | 1x HDMI 2.1 |
|---|---|
| 2x USB-C 40Gbps | |
| 1x USB-C 10Gbps | |
| 7x USB-A 5Gbps | |
| 6x USB-A 1.5Mbps | |
| 1x RJ45 5 | |
| 1x AUDIO_JACK | |
| 1x AUDIO_JACK | |
| 1x S_PDIF | |
| 2x SMA | |
| 1x BIOS_BUTTON |
| Internal Connectors | 5x FAN 4-pin |
|---|---|
| 1x PUMP 4-pin | |
| 1x LED_RGB 4-pin | |
| 3x LED_ARGB 3-pin | |
| 2x USB_2_0 19-pin | |
| 2x USB_3_0 19-pin | |
| 1x USB_3_2 20-pin | |
| 1x AUDIO_FRONT 9-pin | |
| 2x PANEL_FRONT | |
| 1x TPM 20-pin | |
| 1x CHASSIS_INTRUSION | |
| 1x POWER_ATX 24-pin | |
| 2x POWER_CPU 8-pin | |
| 1x OTHER |
| Usage | Gaming |
|---|---|
| Multimedia | |
| Workstation | |
| LED Lighting | Yes |
| Connector Placement | Standard |
| Overclocking Features | Yes |
| Width | 244 mm |
|---|---|
| Length | 305 mm |
| Form Factor | ATX |
