199,95 €
See price history| Brand | MSI |
|---|---|
| Reference | B860M GAMING PLUS WIFI |
| ProductSpecs.colors | ARGB |
| Black | |
| Red | |
| Height | 60 mm |
| Materials | Aluminum |
| PCB | |
| Plastic | |
| Steel | |
| ProductSpecs.eccSupport | No |
| ProductSpecs.biosFeatures | dualBios: false, clearCmos: true, flashback: false |
| Chipset | Intel B860 |
|---|---|
| CPU Socket | Intel 1851 |
| Supported CPUs | 1 |
| Maximum Memory | 256 Go |
|---|---|
| Memory Type | DDR5 |
| Memory Slots | 4 |
| Memory Channel | Dual Channel |
| Max Memory per Slot | 64 Go |
| Supported Memory Frequencies | 4800 MHz |
| 5000 MHz | |
| 5200 MHz | |
| 5400 MHz | |
| 5600 MHz | |
| 5800 MHz | |
| 6000 MHz | |
| 6200 MHz | |
| 6400 MHz |
| Integrated Graphics | No |
|---|---|
| CPU Integrated Graphics Compatible | Yes |
| PCI Slots | PCIe 5.0 x16 |
|---|---|
| PCIe 4.0 x16 (x4) | |
| PCIe 3.0 x16 (x1) |
| Audio Chipset | Realtek ALC897 7.1 channels |
|---|---|
| Audio Channels | 8 |
| Wi-Fi | Yes |
|---|---|
| Bluetooth | Yes |
| Wi-Fi Version | 7 |
| Bluetooth Version | 5.4 |
| Ethernet Controllers | 2.5 Mbps Realtek RTL8125BG |
| RAID Supported | Yes |
|---|---|
| Storage Connectors | 1x M2 |
| 2x M2 | |
| 4x SATA 3.0 | |
| Supported RAID Modes | 0 |
| 1 | |
| 5 | |
| 10 |

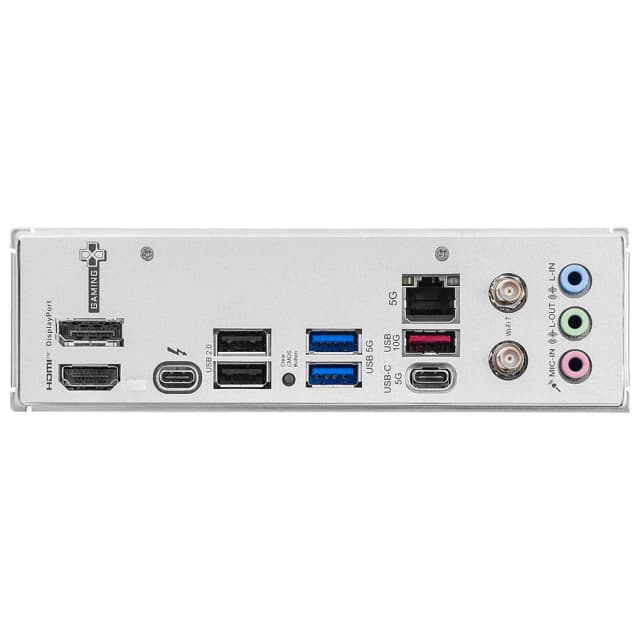

| Rear I/O | 3x AUDIO_JACK |
|---|---|
| 1x RJ45 | |
| 2x USB-A 2.0 | |
| 2x USB-A 3.2 | |
| 1x USB-A 3.2 | |
| 1x USB-C 3.2 | |
| 1x HDMI 2.1 | |
| 1x DISPLAYPORT 1.4 | |
| 2x SMA |
| Internal Connectors | 1x POWER_ATX 24-pin |
|---|---|
| 1x POWER_CPU 8-pin | |
| 1x POWER_CPU 4-pin | |
| 1x USB_3_1 | |
| 1x USB_3_0 | |
| 2x USB_2_0 | |
| 1x AUDIO_FRONT | |
| 2x LED_ARGB | |
| 1x LED_RGB | |
| 1x CHASSIS_INTRUSION | |
| 1x PANEL_FRONT | |
| 4x FAN |
| Usage | Gaming |
|---|---|
| LED Lighting | Yes |
| Connector Placement | Standard |
| Overclocking Features | No |
| Width | 244 mm |
|---|---|
| Length | 244 mm |
| Form Factor | Micro ATX |
