599,95 €
See price history599,95 €
See price history| Brand | Gigabyte |
|---|---|

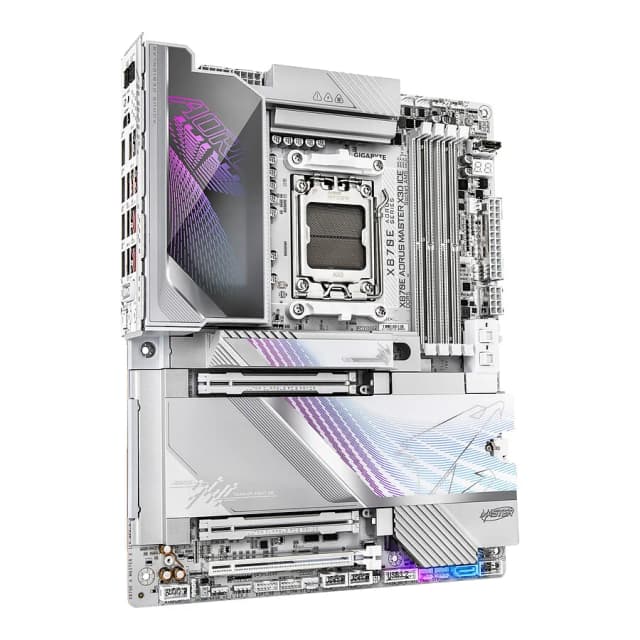

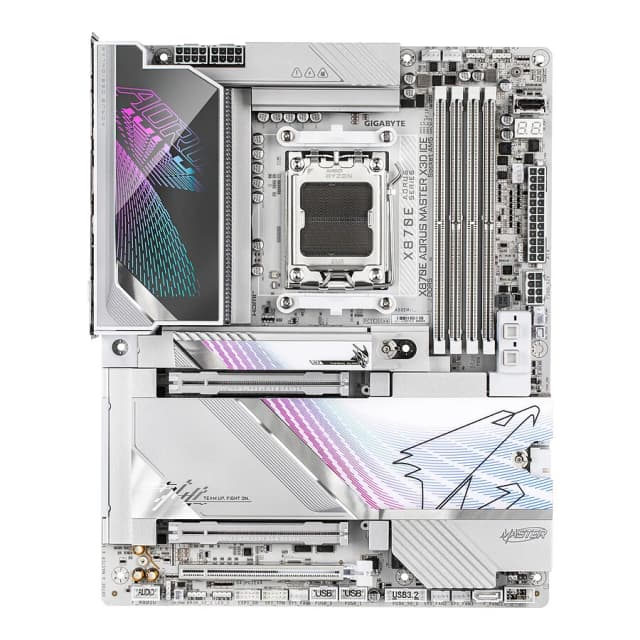

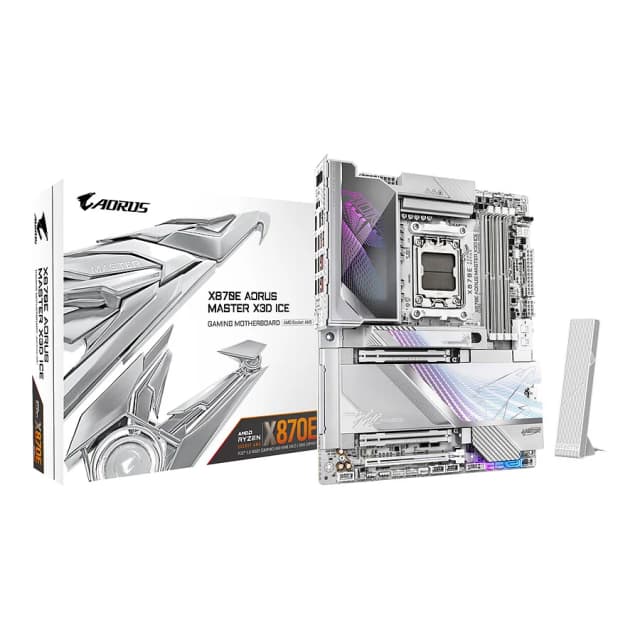

| Reference | X870E A MASTER X ICE |
| ProductSpecs.colors | Black |
| RGB | |
| Silver | |
| White | |
| Height | 35 mm |
| Materials | Aluminum |
| Copper | |
| PCB | |
| Plastic | |
| ProductSpecs.eccSupport | Yes |
| ProductSpecs.biosFeatures | dualBios: false, clearCmos: true, flashback: true |
| Chipset | AMD X870E |
|---|---|
| CPU Socket | AMD AM5 |
| Supported CPUs | 1 |
| Maximum Memory | 256 Go |
|---|---|
| Memory Type | DDR5 |
| Memory Slots | 4 |
| Memory Channel | Dual Channel |
| Max Memory per Slot | 64 Go |
| Supported Memory Frequencies | 4800 MHz |
| 5200 MHz | |
| 5600 MHz | |
| 6000 MHz | |
| 6200 MHz | |
| 6400 MHz | |
| 6600 MHz | |
| 6800 MHz | |
| 7000 MHz | |
| 7200 MHz | |
| 7600 MHz | |
| 7800 MHz | |
| 8000 MHz | |
| 8200 MHz | |
| 8400 MHz | |
| 8600 MHz | |
| 8800 MHz | |
| 9000 MHz |
| Graphics Chipset | Integrated graphics via AMD Ryzen CPU (HDMI 2.1, up to 4096 x 2304) |
|---|---|
| Integrated Graphics | Yes |
| CPU Integrated Graphics Compatible | Yes |
| PCI Slots | PCIe 5.0 x16 |
|---|---|
| PCIe 5.0 x16 (x8) | |
| PCIe 4.0 x16 (x4) | |
| Multi-GPU Type | CrossFire |
| Audio Chipset | Realtek ALC1220-VB 7.1 channels |
|---|---|
| ESS SABRE ES9118 DAC 2.0 channels | |
| Audio Channels | 8 |
| Wi-Fi | Yes |
|---|---|
| Bluetooth | Yes |
| Wi-Fi Version | 7 |
| Bluetooth Version | 5.4 |
| Ethernet Controllers | 10 Mbps Realtek RTL8126 |
| 5 Mbps Realtek RTL8127 |
| RAID Supported | Yes |
|---|---|
| Storage Connectors | 2x SATA 3.0 |
| 2x M2 | |
| 3x M2 | |
| Supported RAID Modes | 0 |
| 1 | |
| 5 | |
| 10 |
| Rear I/O | 2x USB-C USB4 Gen 2x2 40Gb/s |
|---|---|
| 1x USB-C USB 3.2 Gen 2x2 | |
| 1x USB-C USB 3.2 Gen 2 | |
| 7x USB-A USB 3.2 Gen 2 | |
| 1x HDMI 2.1 | |
| 2x RJ45 10GbE + 5GbE | |
| 2x SMA Wi-Fi 7 antenna | |
| 1x OPTICAL_AUDIO S/PDIF | |
| 2x AUDIO_JACK | |
| 1x BIOS_BUTTON Q-Flash Plus | |
| 1x BIOS_BUTTON Clear CMOS | |
| 1x BIOS_BUTTON Power | |
| 1x BIOS_BUTTON Reset / Multi-key |
| Internal Connectors | 1x LED_RGB |
|---|---|
| 4x LED_ARGB | |
| 1x AUDIO_FRONT | |
| 3x POWER_CPU 8-pin | |
| 1x POWER_ATX 24-pin | |
| 2x USB_2_0 9-pin | |
| 2x USB_3_0 | |
| 1x USB_3_2 | |
| 8x FAN | |
| 2x PUMP | |
| 2x SENSOR_TEMP | |
| 1x CHASSIS_INTRUSION | |
| 1x TPM | |
| 1x PANEL_FRONT |
| Usage | Gaming |
|---|---|
| Multimedia | |
| Workstation | |
| LED Lighting | Yes |
| Connector Placement | Standard |
| Overclocking Features | Yes |
| Width | 244 mm |
|---|---|
| Length | 305 mm |
| Form Factor | ATX |
