169,95 €

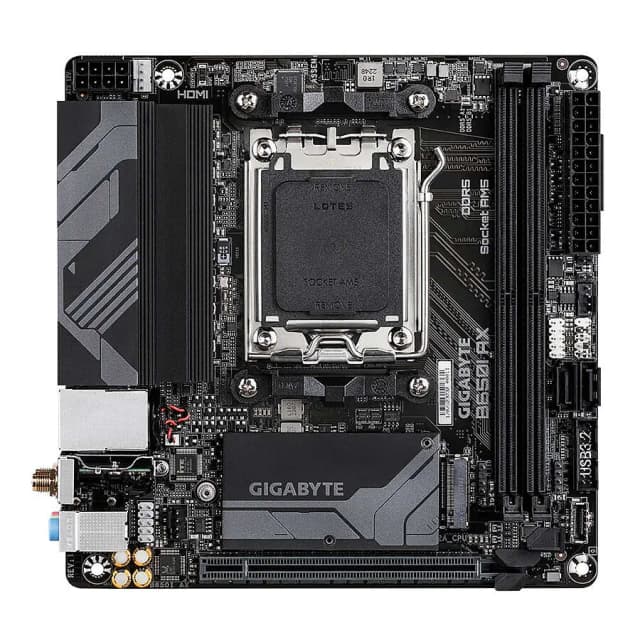

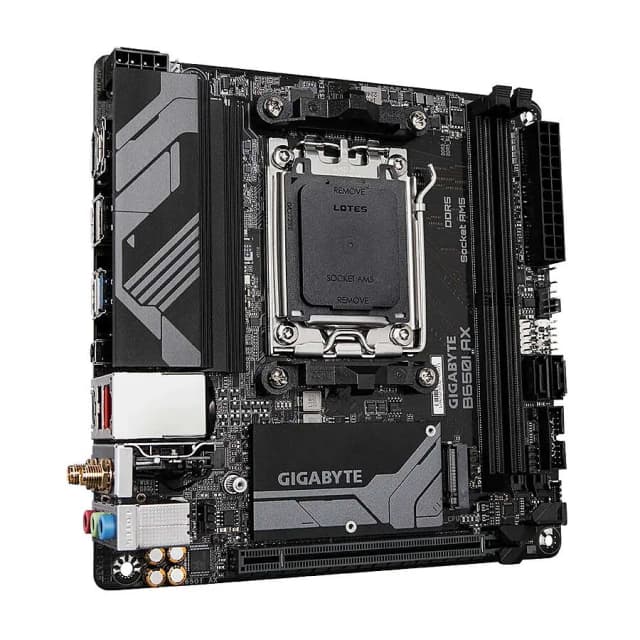

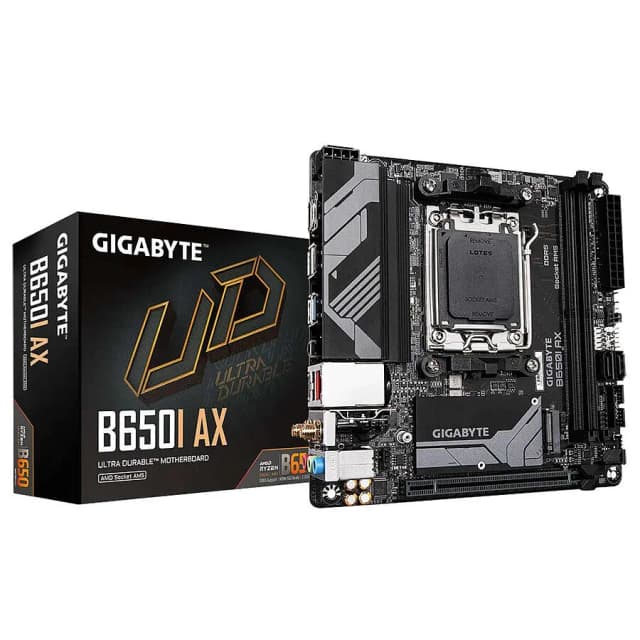

See price history| Brand | Gigabyte |
|---|---|
| Reference | B650I AX |
| ProductSpecs.colors | Black |
| Grey | |
| Height | 17 mm |
| Materials | Aluminum |
| PCB | |
| ProductSpecs.biosFeatures | dualBios: false, clearCmos: true, flashback: true |
| Chipset | AMD B650 |
|---|---|
| CPU Socket | AMD AM5 |
| Supported CPUs | 1 |
| Maximum Memory | 128 Go |
|---|---|
| Memory Type | DDR5 |
| Memory Slots | 2 |
| Memory Channel | Dual Channel |
| Max Memory per Slot | 64 Go |
| Supported Memory Frequencies | 4400 MHz |
| 4800 MHz | |
| 5200 MHz | |
| 5600 MHz | |
| 6000 MHz | |
| 6200 MHz | |
| 6400 MHz |
| Integrated Graphics | No |
|---|---|
| CPU Integrated Graphics Compatible | Yes |
| PCI Slots | PCIe 4.0 x16 |
|---|
| Audio Chipset | Realtek ALC897 |
|---|---|
| Audio Channels | 8 |
| Wi-Fi | Yes |
|---|---|
| Bluetooth | Yes |
| Wi-Fi Version | 6E |
| Bluetooth Version | 5.3 |
| Ethernet Controllers | 2.5 Mbps Realtek RTL8125BG |
| RAID Supported | Yes |
|---|---|
| Storage Connectors | 1x M2 |
| 2x SATA 3.0 | |
| Supported RAID Modes | 0 |
| 1 |

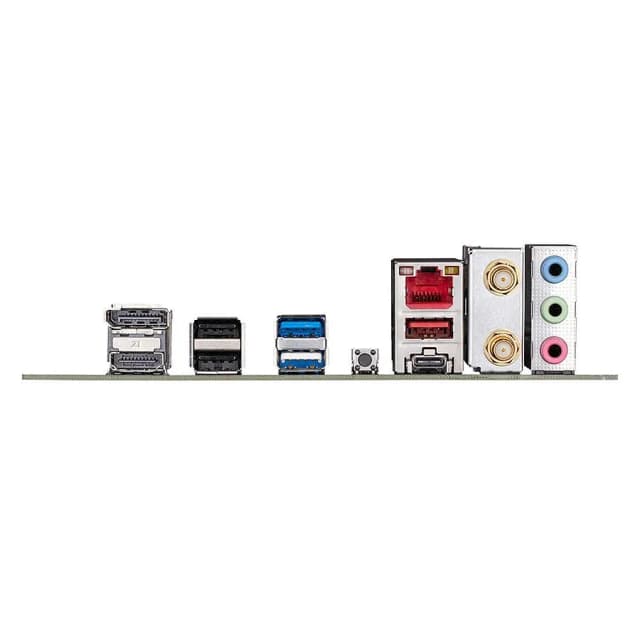

| Rear I/O | 1x HDMI 2.1 |
|---|---|
| 1x DISPLAYPORT 1.4 | |
| 1x USB-A 3.2 | |
| 1x USB-A 3.2 | |
| 3x USB-A 2.0 | |
| 1x USB-C 3.2 | |
| 1x RJ45 2.5G | |
| 3x AUDIO_JACK | |
| 2x SMA 6E | |
| 1x BIOS_BUTTON |
| Internal Connectors | 1x LED_ARGB 4-pin |
|---|---|
| 1x AUDIO_FRONT 10-pin | |
| 1x POWER_CPU 8-pin | |
| 1x POWER_ATX 24-pin | |
| 2x USB_2_0 | |
| 2x USB_3_0 | |
| 1x LED_RGB 4-pin | |
| 1x USB_3_0 20-pin | |
| 1x CHASSIS_INTRUSION 2-pin | |
| 3x FAN | |
| 1x PANEL_FRONT | |
| 1x OTHER |
| Usage | Multimedia |
|---|---|
| LED Lighting | Yes |
| Connector Placement | Standard |
| Overclocking Features | Yes |
| Width | 170 mm |
|---|---|
| Length | 170 mm |
| Form Factor | Mini-ITX |
