| Brand | ASUS |
|---|---|
| Reference | 90YE00Z1-B0NA00 |
| ProductSpecs.colors | Black |

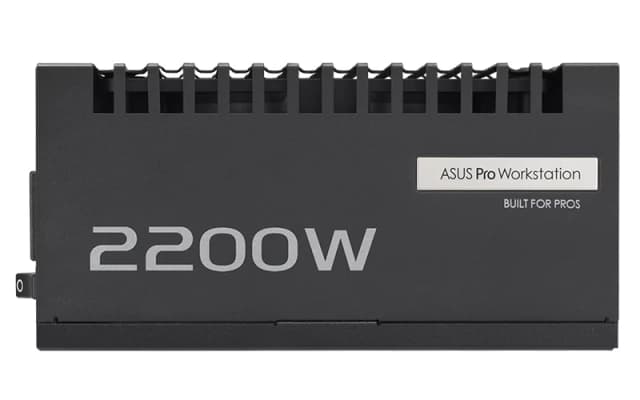

| Designation | ASUS Pro Workstation 2200W |
| ProductSpecs.rail12vAmps | 183.3 |
| ProductSpecs.efficiency50 | 92 |
| ProductSpecs.efficiency100 | 89 |
| ProductSpecs.warrantyYears | 10 |
| 80 Plus Efficiency | Platinum |
| Wattage | 2200 W |
|---|---|
| 80 Plus Certified | Yes |
| Modular | Yes |
|---|---|
| Connectors | 2x POWER_CPU 8-pin |
| 2x POWER_CPU 4-pin | |
| 12x POWER_SATA | |
| 1x POWER_ATX 24-pin | |
| 3x POWER_MOLEX 4-pin | |
| 4x POWER_PCIE 16-pin | |
| 4x POWER_PCIE 8-pin | |
| Modularity Type | Full |
| Fan Size | 135 mm |
|---|---|
| Silent | Yes |
| Cooling Type | Active |
| ATX Standards | ATX12V |
|---|---|
| EPS12V | |
| ATX 3.0 Support | Yes |
| ATX 3.1 Support | Yes |
| Multi-GPU Support | Yes |
| RGB Lighting | No |
|---|---|
| Usage Type | Workstation |
| Width | 150 mm |
|---|---|
| Height | 86 mm |
| Length | 175 mm |
| Weight | 2.13 kg |
| Form Factor | ATX/EPS |
