149,95 €
See price history| Brand | MSI |
|---|---|

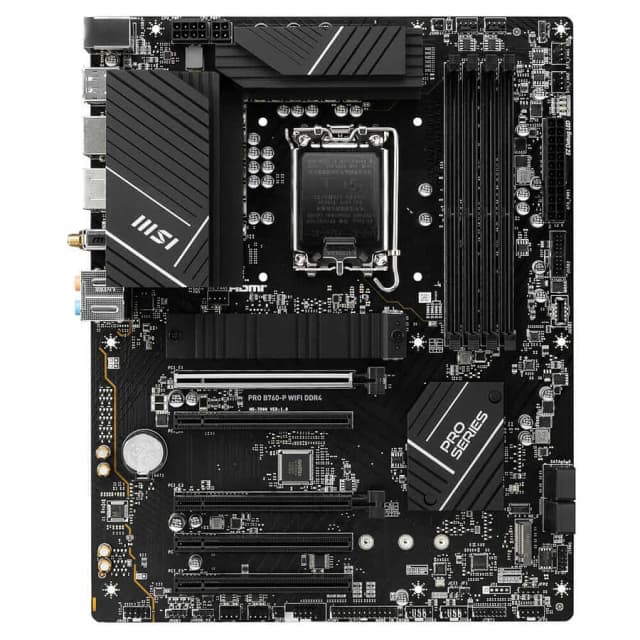

| Reference | PRO B760-P WIFI DDR4 |
| ProductSpecs.colors | Black |
| Silver | |
| Height | 30 mm |
| Materials | Aluminum |
| PCB | |
| Plastic | |
| Steel | |
| ProductSpecs.eccSupport | No |
| ProductSpecs.biosFeatures | dualBios: false, clearCmos: true, flashback: false |
| Chipset | Intel B760 |
|---|---|
| CPU Socket | Intel 1700 |
| Supported CPUs | 1 |
| Maximum Memory | 128 Go |
|---|---|
| Memory Type | DDR4 |
| Memory Slots | 4 |
| Memory Channel | Dual Channel |
| Max Memory per Slot | 32 Go |
| Supported Memory Frequencies | 2133 MHz |
| 2400 MHz | |
| 2666 MHz | |
| 2800 MHz | |
| 2933 MHz | |
| 3000 MHz | |
| 3200 MHz | |
| 3333 MHz | |
| 3400 MHz | |
| 3466 MHz | |
| 3600 MHz | |
| 3733 MHz | |
| 3800 MHz | |
| 4000 MHz | |
| 4200 MHz | |
| 4266 MHz | |
| 4400 MHz | |
| 4600 MHz | |
| 4800 MHz | |
| 5000 MHz | |
| 5066 MHz | |
| 5200 MHz | |
| 5333 MHz |
| Integrated Graphics | No |
|---|---|
| CPU Integrated Graphics Compatible | Yes |
| PCI Slots | PCIe 4.0 x16 |
|---|---|
| PCIe 4.0 x16 (x4) | |
| 2x PCIe 3.0 x16 (x1) | |
| Multi-GPU Type | CrossFire |
| Audio Chipset | Realtek ALC897 7.1 channels |
|---|---|
| Audio Channels | 8 |
| Wi-Fi | Yes |
|---|---|
| Bluetooth | Yes |
| Wi-Fi Version | 6E |
| Bluetooth Version | 5.3 |
| Ethernet Controllers | 2.5 Mbps Realtek RTL8125BG |
| RAID Supported | Yes |
|---|---|
| Storage Connectors | 1x M2 |
| 1x M2 | |
| 4x SATA 3.0 | |
| Supported RAID Modes | 0 |
| 1 | |
| 5 | |
| 10 |

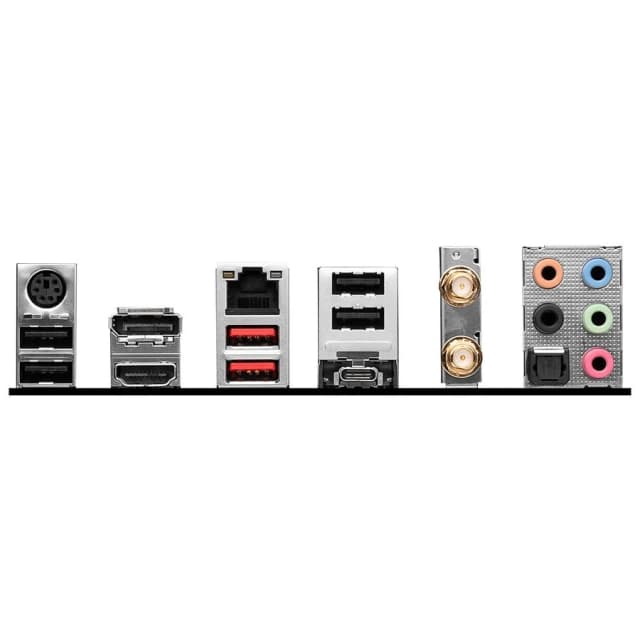

| Rear I/O | 3x USB-A 3.2 |
|---|---|
| 4x USB-A 2.0 | |
| 1x USB-C 3.2 Gen2x2 | |
| 1x HDMI 2.1 | |
| 1x DISPLAYPORT 1.4 | |
| 1x RJ45 2.5G | |
| 2x SMA | |
| 5x AUDIO_JACK | |
| 1x S_PDIF | |
| 1x PS2 |
| Internal Connectors | 1x POWER_ATX 24-pin |
|---|---|
| 1x POWER_CPU 8-pin | |
| 2x USB_2_0 | |
| 1x USB_3_0 | |
| 1x LED_RGB | |
| 2x LED_ARGB | |
| 1x AUDIO_FRONT | |
| 1x COM | |
| 1x CHASSIS_INTRUSION | |
| 1x PANEL_FRONT | |
| 5x FAN |
| Usage | Multimedia |
|---|---|
| Workstation | |
| LED Lighting | No |
| Connector Placement | Standard |
| Overclocking Features | No |
| Width | 243.8 mm |
|---|---|
| Length | 304.8 mm |
| Form Factor | ATX |
