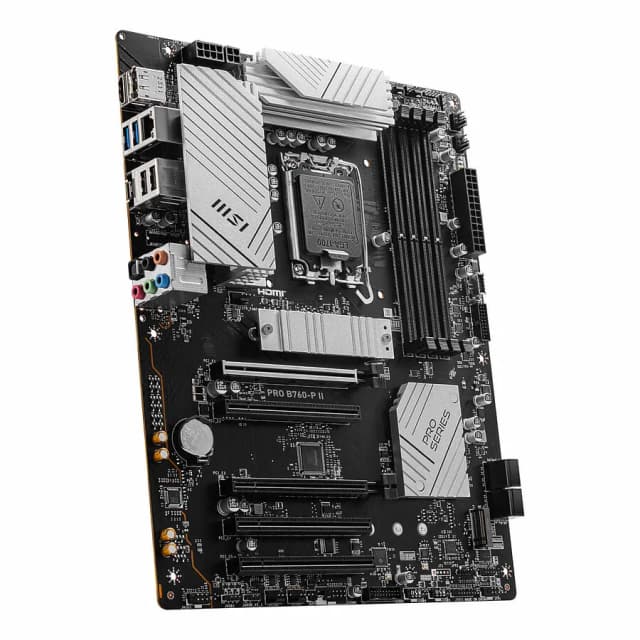

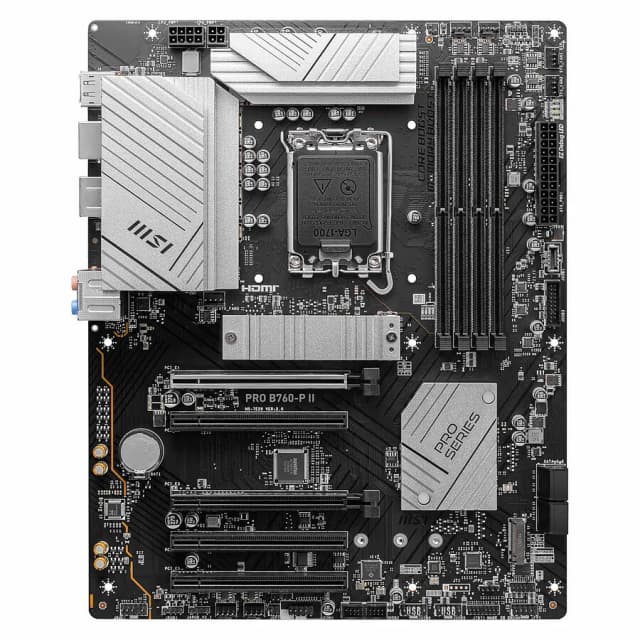

MSI PRO B760-P II
MSI — PRO B760-P II
MSI — PRO B760-P II
| Brand | MSI |
|---|---|
| Reference | PRO B760-P II |
| ProductSpecs.colors | Black |
| Height | 0 mm |
| Materials | Copper |
| PCB | |
| Steel | |
| ProductSpecs.biosFeatures | dualBios: false, clearCmos: false, flashback: false |
| Chipset | Intel B760 Express |
|---|---|
| CPU Socket | Intel 1700 |
| Supported CPUs | 1 |
| Maximum Memory | 256 Go |
|---|---|
| Memory Type | DDR5 |
| Memory Slots | 4 |
| Memory Channel | Dual Channel |
| Max Memory per Slot | 64 Go |
| Supported Memory Frequencies | 4800 MHz |
| 5000 MHz | |
| 5200 MHz | |
| 5400 MHz | |
| 5600 MHz | |
| 5800 MHz | |
| 6000 MHz | |
| 6200 MHz | |
| 6400 MHz | |
| 6600 MHz | |
| 6800 MHz | |
| 7000 MHz |
| Integrated Graphics | Yes |
|---|---|
| CPU Integrated Graphics Compatible | Yes |
| PCI Slots | PCIe 4.0 x16 |
|---|---|
| PCIe 3.0 x16 (x1) | |
| PCIe 4.0 x16 (x4) | |
| 2x PCIe 3.0 x16 (x1) | |
| Multi-GPU Type | None |
| Audio Chipset | Realtek ALC897 7.1 channels |
|---|---|
| Audio Channels | 8 |
| Wi-Fi | No |
|---|---|
| Ethernet Controllers | 2.5 Mbps Realtek RTL8125BG |
| RAID Supported | Yes |
|---|---|
| Storage Connectors | 2x M2 |
| 4x SATA 3.0 | |
| Supported RAID Modes | 0 |
| 1 | |
| 5 | |
| 10 |
| Rear I/O | 1x S_PDIF |
|---|---|
| 1x USB-C 3.2 Gen 2 | |
| 1x RJ45 2.5G | |
| 5x AUDIO_JACK | |
| 1x DISPLAYPORT 1.4 | |
| 1x HDMI 2.1 | |
| 2x USB-A 3.0 | |
| 2x USB-A 2.0 |
| Internal Connectors | 2x LED_RGB |
|---|---|
| 1x POWER_CPU 8-pin | |
| 1x POWER_ATX 24-pin | |
| 4x USB_2_0 | |
| 4x USB_3_0 | |
| 2x LED_ARGB | |
| 1x AUDIO_FRONT | |
| 1x CHASSIS_INTRUSION | |
| 1x POWER_CPU 4-pin | |
| 1x COM | |
| 1x USB_3_1 | |
| 2x PANEL_FRONT | |
| 5x FAN | |
| 1x PUMP | |
| 1x TPM |
| Usage | Multimedia |
|---|---|
| LED Lighting | Yes |
| Connector Placement | Standard |
| Overclocking Features | No |
| Width | 243.84 mm |
|---|---|
| Length | 304.8 mm |
| Form Factor | ATX |
145,95 €
See price history
