349,95 €
See price history| Brand | Gigabyte |
|---|---|

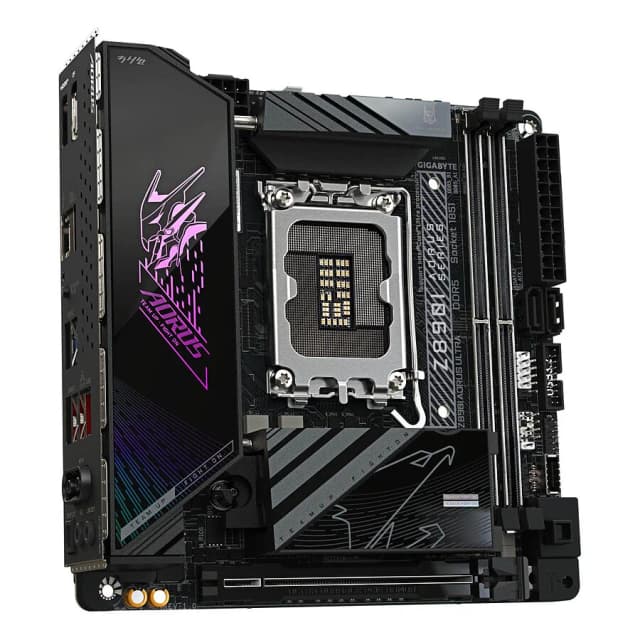

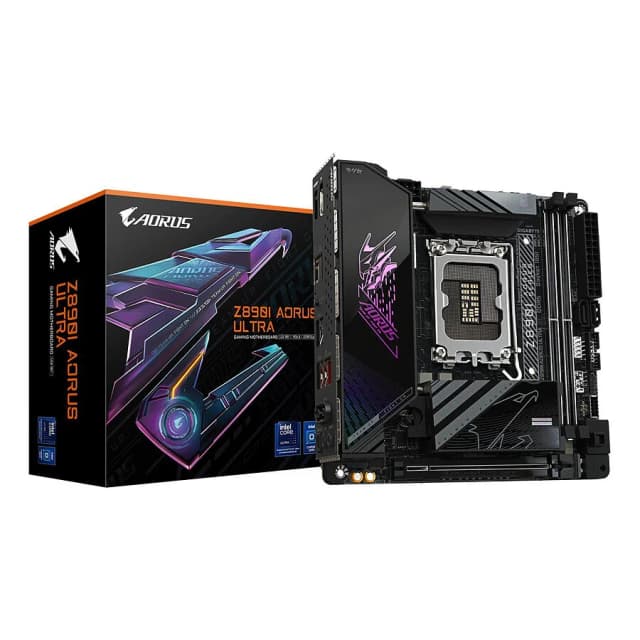

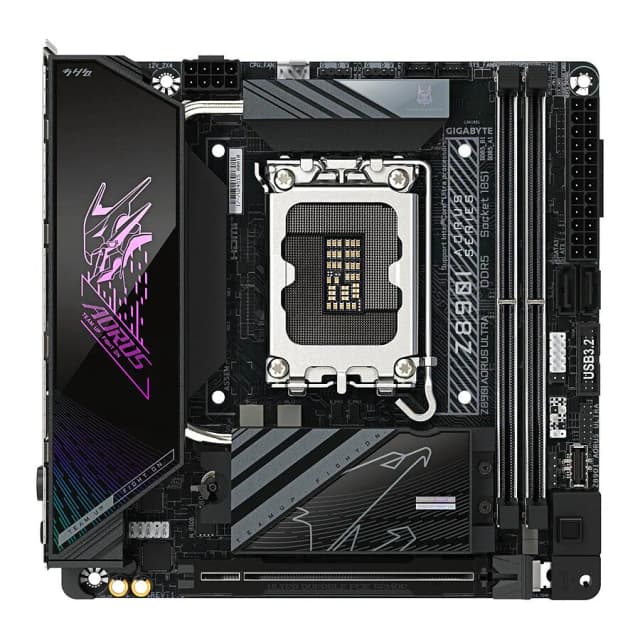

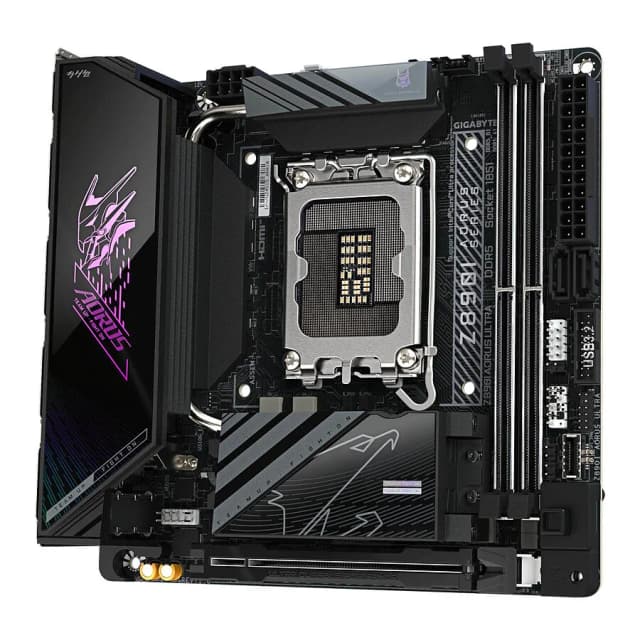

| Reference | Z890I AORUS ULTRA |
| ProductSpecs.colors | Black |
| Height | 40 mm |
| Materials | Aluminum |
| PCB | |
| ProductSpecs.eccSupport | No |
| ProductSpecs.biosFeatures | dualBios: false, clearCmos: true, flashback: true |
| Chipset | Intel Z890 |
|---|---|
| CPU Socket | Intel 1851 |
| Supported CPUs | 1 |
| Maximum Memory | 128 Go |
|---|---|
| Memory Type | DDR5 |
| Memory Slots | 2 |
| Memory Channel | Dual Channel |
| Max Memory per Slot | 64 Go |
| Supported Memory Frequencies | 5600 MHz |
| 5800 MHz | |
| 6000 MHz | |
| 6200 MHz | |
| 6400 MHz | |
| 6600 MHz | |
| 6800 MHz | |
| 7000 MHz | |
| 7200 MHz | |
| 7400 MHz | |
| 7600 MHz | |
| 7800 MHz | |
| 7900 MHz | |
| 7950 MHz | |
| 8000 MHz | |
| 8200 MHz | |
| 8266 MHz | |
| 8400 MHz | |
| 8600 MHz | |
| 8800 MHz | |
| 9200 MHz |
| Integrated Graphics | Yes |
|---|---|
| CPU Integrated Graphics Compatible | Yes |
| PCI Slots | PCIe 5.0 x16 |
|---|
| Audio Chipset | Realtek ALC897 7.1 channels |
|---|---|
| Audio Channels | 8 |
| Wi-Fi | Yes |
|---|---|
| Bluetooth | Yes |
| Wi-Fi Version | 7 |
| Bluetooth Version | 5.4 |
| Ethernet Controllers | 2.5 Mbps Realtek RTL8125 |
| RAID Supported | Yes |
|---|---|
| Storage Connectors | 1x M2 |
| 1x M2 | |
| 2x SATA 3.0 | |
| Supported RAID Modes | 0 |
| 1 |

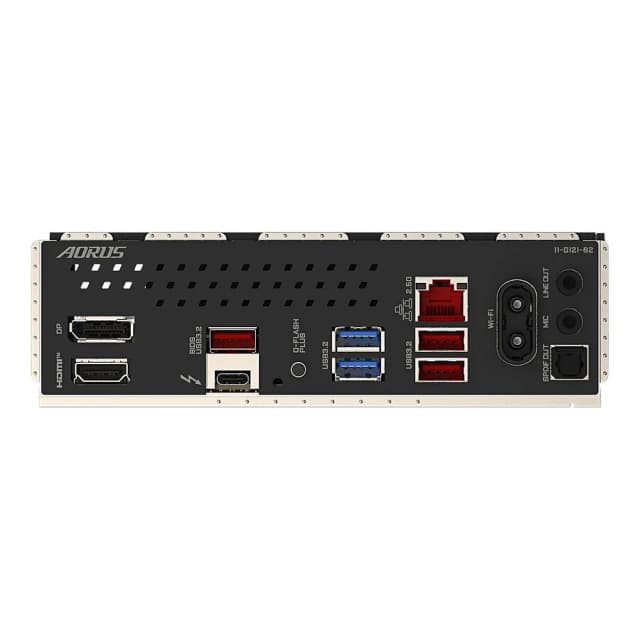

| Rear I/O | 1x RJ45 2.5G |
|---|---|
| 3x USB-A 3.2 | |
| 2x USB-A 2.0 | |
| 1x USB-C 4.0 | |
| 1x HDMI 2.1 | |
| 1x DISPLAYPORT 1.4 | |
| 2x AUDIO_JACK | |
| 1x S_PDIF | |
| 2x SMA |
| Internal Connectors | 1x USB_3_2 |
|---|---|
| 2x USB_2_0 | |
| 1x AUDIO_FRONT | |
| 2x LED_ARGB | |
| 3x FAN | |
| 1x POWER_ATX 24-pin | |
| 1x POWER_CPU 8-pin | |
| 1x PANEL_FRONT | |
| 1x TPM |
| Usage | Gaming |
|---|---|
| LED Lighting | Yes |
| Connector Placement | Standard |
| Overclocking Features | Yes |
| Width | 170 mm |
|---|---|
| Length | 170 mm |
| Form Factor | Mini-ITX |
