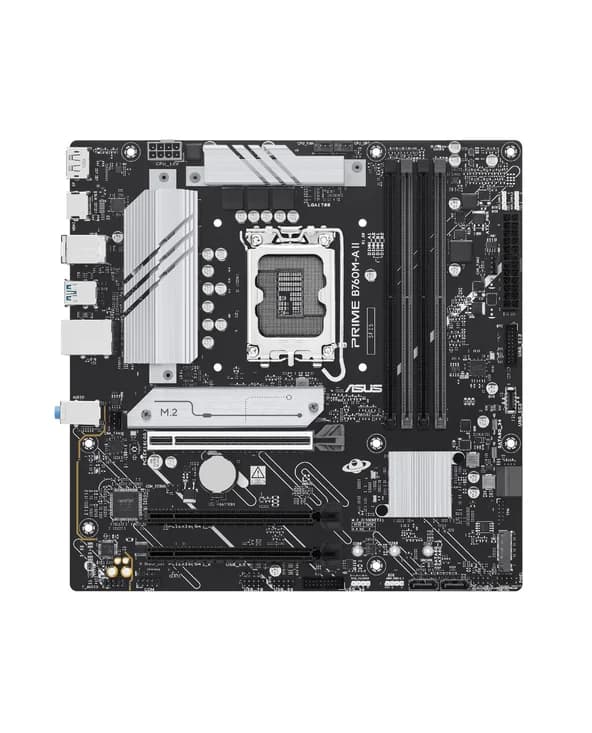

ASUS PRIME B760M-A II-CSM

ASUS — 90MB1NG0-M0EAYC

Technical Specifications

General

Brand	ASUS
Reference	90MB1NG0-M0EAYC
Colors	Grey
Height	0 mm
Materials	PCB
eccSupport	Yes
biosFeatures	dualBios: false, clearCmos: true, flashback: true

Processor

Chipset	Intel B760
CPU Socket	Intel 1700
Supported CPUs	1

Memory

Maximum Memory	256 Go
Memory Type	DDR5
Memory Slots	4
Memory Channel	Dual Channel
Max Memory per Slot	64 Go
Supported Memory Frequencies	4800 MHz
	5000 MHz
	5200 MHz
	5400 MHz
	5600 MHz
	5800 MHz
	6000 MHz
	6200 MHz
	6400 MHz
	6600 MHz
	6800 MHz
	7000 MHz
	7200 MHz

Graphics

Graphics Chipset	Intel UHD Graphics
Integrated Graphics	Yes
CPU Integrated Graphics Compatible	Yes

Expansion

PCI Slots	PCIe 5.0 x16
	PCIe 4.0 x16 (x4)
	PCIe 4.0 x16 (x1)

Audio

Audio Chipset	Realtek 7.1 Surround Sound High Definition Audio CODEC 7.1 channels
Audio Channels	7

Network

Wi-Fi	No
Bluetooth	No
Ethernet Controllers	2.5 Mbps Realtek 2.5Gb Ethernet

Storage

RAID Supported	Yes
Storage Connectors	2x M2
Storage Connectors	4x SATA 3.0
Supported RAID Modes	0
	1
	5
	10

Connectivity

Wi-Fi	No
Bluetooth	No
Ethernet Controllers	2.5 Mbps Realtek 2.5Gb Ethernet

Internal Connectivity

Internal Connectors	1x FAN 4-pin
	1x FAN 4-pin
	2x FAN 4-pin
	1x POWER_ATX 24-pin
	1x POWER_CPU 8-pin
	2x USB_3_0 19-pin
	1x USB_3_1 19-pin
	3x USB_2_0 9-pin
	3x LED_ARGB
	1x LED_RGB
	1x AUDIO_FRONT 9-pin
	1x OTHER
	1x COM 10-pin
	1x TPM 14-pin
	1x PANEL_FRONT 20-pin

Features

Usage	Gaming
	Multimedia
	Workstation
LED Lighting	Yes
Connector Placement	Standard
Overclocking Features	Yes

Dimensions

Width	244 mm
Length	244 mm
Form Factor	Micro ATX
